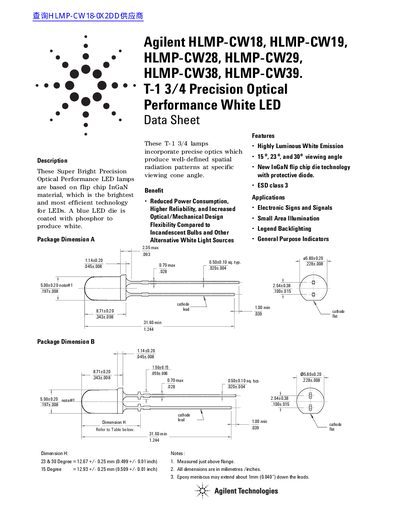

This data sheet introduces the features and characteristics of Agilent HLMP-CW18, HLMP-CW19, HLMP-CW28, HLMP-CW29, HLMP-CW38, HLMP-CW39 products.
The HLMP-CW series are super‑bright precision optical performance white LED lamps based on flip‑chip InGaN technology. They offer highly luminous white emission with selectable viewing angles of 15°, 23°, and 30°, and feature ESD class 3 protection and a protective diode.
These T‑1 3/4 lamps are suited for electronic signs, small‑area illumination, legend backlighting, and general‑purpose indicators. The datasheet includes a device selection guide, absolute maximum ratings, electrical/optical characteristics, and intensity bin limits to aid designers in choosing the appropriate part.
| Viewing Angle | 15°, 23°, 30° |
|---|---|
| Forward Voltage (typical) | 3.4 V |
| Maximum Forward Current | 30 mA |
| Power Dissipation | 120 mW |
| LED Junction Temperature | 130 °C |
| Operating Temperature Range | -40 to +85 °C |
The series offers 15°, 23°, and 30° viewing angles.
The absolute maximum forward current is 30 mA.
LED light output can cause eye injury; avoid looking directly at the LED without proper safety equipment.
The typical forward voltage is about 3.4 V.
