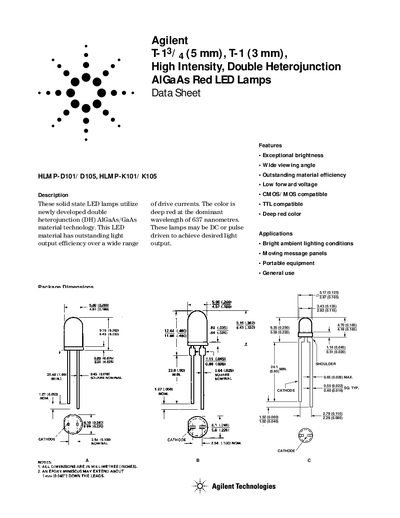

Agilent HLMP-D101/D105/HLMP-K101/K105 High Intensity Red LED Lamps Datasheet
This document is a technical datasheet for Agilent Technologies' HLMP-D101/D105 and HLMP-K101/K105 high intensity red LED lamps. These solid-state devices utilize double heterojunction AlGaAs/GaAs material technology to provide deep red light with a dominant wavelength of 637 nanometres.
Read onlineAgilent HLMP-K101 specifications
| Dominant Wavelength | 637 nm |
|---|---|
| Peak Forward Current | 300 mA |
| Average Forward Current | 20 mA |
| Reverse Voltage | 5V |
| Operating Temperature Range | -20 to +100°C |
Source: Agilent HLMP-D101/D105/HLMP-K101/K105 High Intensity Red LED Lamps Datasheet
All Agilent HLMP-K101 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the dominant wavelength of these LEDs?
The color is deep red at the dominant wavelength of 637 nanometres.
From: Agilent HLMP-D101/D105/HLMP-K101/K105 High Intensity Red LED Lamps Datasheet
Are these LEDs compatible with standard logic circuits?
Yes, they are listed as CMOS/ MOS and TTL compatible.
From: Agilent HLMP-D101/D105/HLMP-K101/K105 High Intensity Red LED Lamps Datasheet
What is the dominant wavelength of the HLMP red LEDs?
The dominant wavelength is 637 nm.
From: Agilent HLMP-D101/D105 and HLMP-K101/K105 Red LED Lamps Data Sheet
