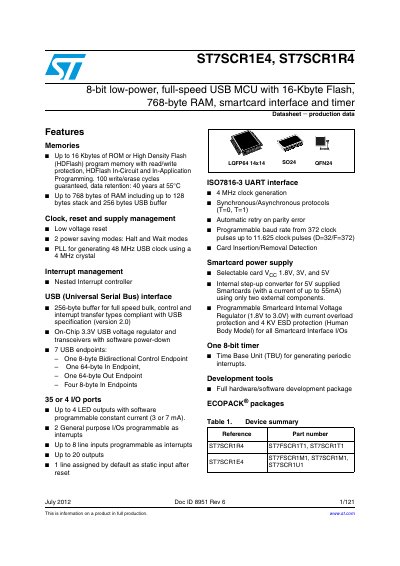

STMicroelectronics ST7SCR1E4/ST7SCR1R4 8-bit MCU Datasheet
This document is a production datasheet for the ST7SCR1E4 and ST7SCR1R4, which are 8-bit low-power microcontrollers designed for full-speed USB applications. These devices feature up to 16 Kbytes of ROM or High Density Flash (HDFlash) program memory and up to 768 bytes of RAM. Key capabilities include a smartcard interface with selectable voltage levels and an internal step-up converter, as well as a USB interface compliant with USB 2.0 specifications.
Read onlineSTMicroelectronics ST7SCR specifications
| Program Memory | Upto 16 Kbytes of ROM or High Density Flash |
|---|---|
| RAM | Up to 768 bytes |
| USB Interface | Full speed compliant with USB 2.0 |
| Clock Generation | 48 MHz USB clock using a 4 MHz crystal |
| Smartcard Voltage | Selectable 1.8V, 3V, and 5V |
| LED Outputs | Upto 4LED outputs |
