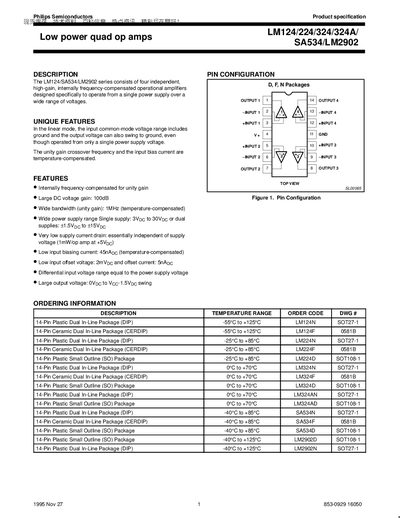

This is a product specification for the LM124/224/324/324A/SA534/LM2902 series of low power quad op amps. These products have high gain, internal frequency compensation, and are specifically designed for single supply operation over a wide range of voltages.
This document provides a comprehensive specification for Philips' low‑power quad operational amplifiers, covering the LM124, LM224, LM324, LM324A, SA534 and LM2902 families. It describes their internal frequency compensation, high DC gain, wide supply voltage range, and low supply‑current characteristics.
Key data include absolute maximum ratings, DC electrical characteristics, typical performance curves, pin‑out diagrams, and example application circuits. The sheet also lists ordering information for various package types (DIP, CERDIP, SO) and outlines typical usage in single‑supply and dual‑supply configurations.
| Unity gain bandwidth | 1 MHz (temperature‑compensated) |
|---|---|
| DC voltage gain | 100 dB |
| Supply current drain | 1 mW per op‑amp at +5 V |
| Input offset voltage | 2 mV |
| Maximum output current | ≈40 mA |
| Power dissipation (N package) | 1420 mW |
| Operating temperature range (LM124) | -55 °C to +125 °C |
The unity gain bandwidth is 1 MHz, temperature‑compensated.
The maximum output current is approximately 40 mA.
