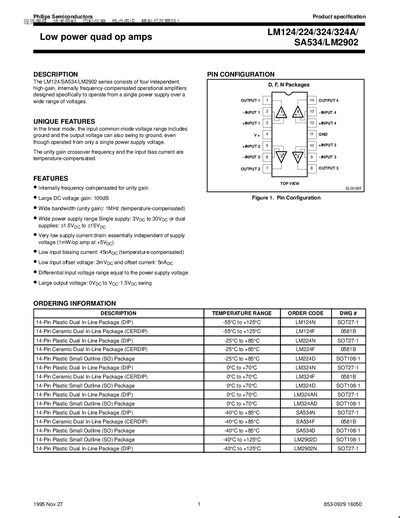

The LM124/SA534/LM2902 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. The unique features include an input common-mode voltage range that includes ground and an output voltage that can swing to ground, even though operated from only a single power supply voltage. The unity gain crossover frequency and the input bias current are temperature-compensated.
The document provides specifications for a family of low‑power quad operational amplifiers from Philips Semiconductors. It describes the devices' internal frequency compensation, high DC gain, wide bandwidth, low supply current, and input/output voltage ranges.
Key sections include a description of unique features, absolute maximum ratings, DC electrical characteristics, typical performance curves, pin configurations, equivalent circuit diagrams, and example application circuits.
| Supply voltage range (single supply) | 3 V to 30 V |
|---|---|
| Supply voltage range (dual supply) | ±1.5 V to +15 V |
| Maximum supply voltage | 32 V (or +16 V) |
| Maximum power dissipation (N package) | 1.42 W |
| Input bias current | 45 nA (typ) |
| Input offset voltage | 2 mV (typ) |
| Output voltage swing | 0 V to VCC‑1.5 V |
| Unity‑gain bandwidth | 1 MHz |
| Slew rate | 0.3 V/µs |
| Operating temperature range | -55 °C to +125 °C (model dependent) |
| Maximum output current | ≈40 mA |
The unity‑gain bandwidth is 1 MHz.
The devices can tolerate up to 32 V (or +16 V) supply voltage.
Each amplifier can source or sink about 40 mA continuously.
The typical input bias current is 45 nA.
