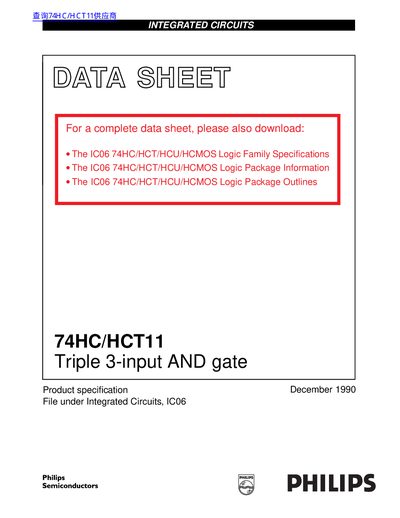

This document describes the features and characteristics of the 74HC/HCT11 triple 3-input AND gate, including output capability, power dissipation, propagation delay, and input capacitance.
The Philips 74HC/HCT11 is a high-speed Si-gate CMOS device that is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A and provides the 3-input AND function. The device features standard output capability and belongs to the SSI (Small Scale Integration) category.
The document details the pin configuration, functional diagrams, logic symbols, and AC characteristics for both 74HC and 74HCT variants. It includes typical propagation delay values, input capacitance, and power dissipation capacitance under specific test conditions (GND = 0 V; Tamb = 25 °C; t; = t = 6 ns).
| Propagation delay (typical) | 10 ns |
|---|---|
| Input capacitance | 3.5 pF |
| Power dissipation capacitance per gate | 18 pF |
| Output capability | standard |
| Icc category | SSI |
The 74HC/HCT11 provides the 3-input AND function.
The typical propagation delay is 10 ns to 11 ns.
