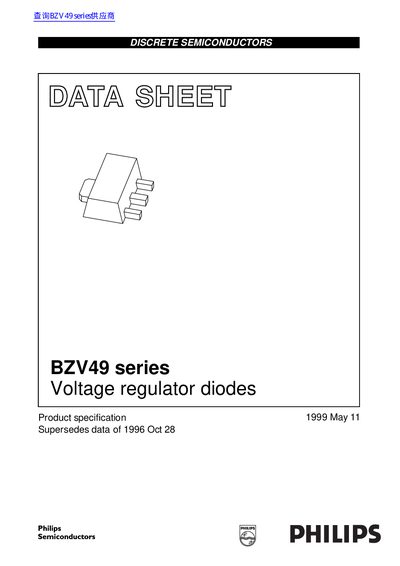

Philips BZV49 Series Voltage Regulator Diodes Datasheet
The document is a product specification datasheet for the Philips BZV49 series of voltage regulator diodes. These are medium-power devices designed for general regulation functions, available in a SOT89 plastic surface-mounted package (SMD). The series covers a normalized E24 tolerance range with nominal working voltages from 2.4 V to 75 V.
Read onlinePhilips BZV49 specifications
| Total power dissipation | max. 1 W |
|---|---|
| Non-repetitive peak reverse power dissipation | max. 40 W |
| Package type | SOT89 |
| Tolerance | approx. +5% |
Source: Philips BZV49 Series Voltage Regulator Diodes Datasheet
All Philips BZV49 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for these diodes?
The diodes are available in a SOT89 plastic SMD package.
From: Philips BZV49 Series Voltage Regulator Diodes Datasheet
What is the maximum total power dissipation for these diodes?
The maximum total power dissipation is 1 W when the ambient temperature is 25 °C.
From: Philips BZV49 Series Voltage Regulator Diodes Datasheet
What is the working voltage range of the BZV49 series?
The nominal working voltages range from 2.4 V to 75 V in an E24 tolerance range.
From: Philips BZV49 Series Voltage Regulator Diodes Data Sheet
How many types are included in the BZV49 series?
The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
From: Philips BZV49 Series Voltage Regulator Diodes Data Sheet
