This datasheet provides the characteristics and parameters of the BZV49 series, including rated working voltage, power range, and package type

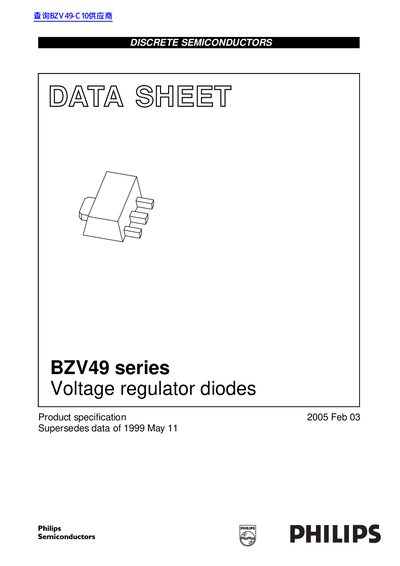

This document is a product specification datasheet for the Philips BZV49 series of medium-power voltage regulator diodes. These components are designed as discrete semiconductors with a total power dissipation maximum of 1 W and are available in a normalized E24 tolerance range from 2.4 V to 75 V.
| Total power dissipation (max) | 1 W |
|---|---|
| Continuous forward current (max) | 250 mA |
| Working voltage range | 2.4 to 75 V |
The nominal working voltages range from 2.4 V to 75 V in an E24 tolerance range.
The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
The maximum junction temperature is 150 °C.
