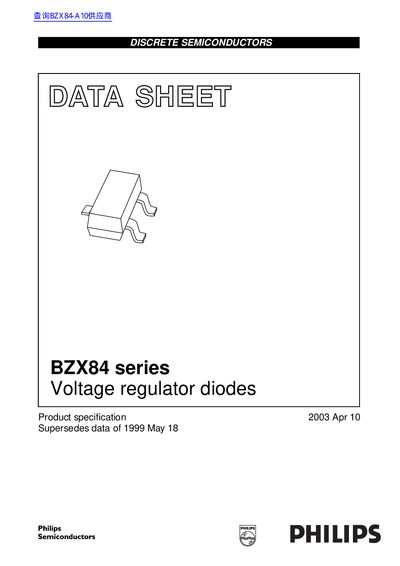

PHILIPS BZX84 series Voltage regulator diodes Data Sheet

Datasheet

BZX84 series is a low-power voltage regulator diode released by Philips Semiconductors. It is packaged in a small SOT23 plastic SMD package and has a maximum total power dissipation of 250 mW. The diodes are available in the normalized E24 ±1% (BZX84-A), ±2% (BZX84-B) and approx. ±5% (BZX84-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V. It is suitable for general regulation functions.

PHILIPS BZX84 series Voltage regulator diodes handbook

Datasheet

This document describes the features and characteristics of the BZX84 series voltage regulator diodes, including maximum power dissipation, three tolerance series, working voltage range, and maximum non-repetitive peak reverse power dissipation.
