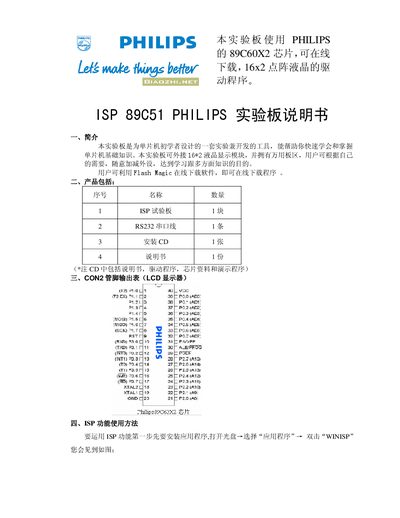

Philips ISP 89C51 Experimental Board User Manual
This manual introduces the Philips ISP 89C51 experimental board, a development tool for beginners that supports a 16x2 LCD module, RS232 interface and a customizable prototyping area. It lists the package contents and pin‑out table for the board.
The guide explains how to use the ISP function with Flash Magic software, including installation, driver selection, jumper settings before and after programming, and the erase‑program‑verify workflow. This manual is written in Chinese.
Philips 89C51 specifications
| Operating Frequency | up to 33 MHz |
|---|---|
| Program Memory Type | non-volatile FLASH |
| Instruction Set | 80C51 |
| Interrupt Sources | 6 |
| I/O Ports | Four 8-bit |
| Voltage Range | 5V 0 to 33 |
Source: Philips 89C51/89C52/89C54/89C58 80C51 8-bit Microcontroller Family Datasheet
