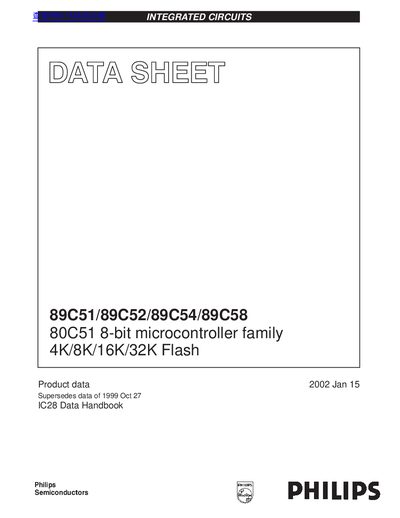

philips 89C51/89C52/89C54/89C58 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash handbook1

About this manual

This datasheet covers the Philips 89C51/89C52/89C54/89C58 family of Single-Chip 8-bit Microcontrollers. These devices are derivatives of the 80C51 microcontroller family and contain non-volatile FLASH program memory that is parallel programmable via Multi-Time Programming (MTP). The document details features such as a speed up to 33 MHz, fully static operation, expandable RAM, four interrupt priority levels, and enhanced UART capabilities.

What's inside

• Description
• Selection Table for Flash Devices
• Device Comparison Table
• Ordering Information
• Block Diagrams
• Pin Configurations
• Pin Descriptions

Specifications

Frequently asked questions

What is the programming method for these devices?

The devices support parallel programming via Multi-Time Programming (MTP) using a programmer.

Are these devices compatible with the 80C51 instruction set?

Yes, all devices in this family have the same instruction set as the 80C51.
