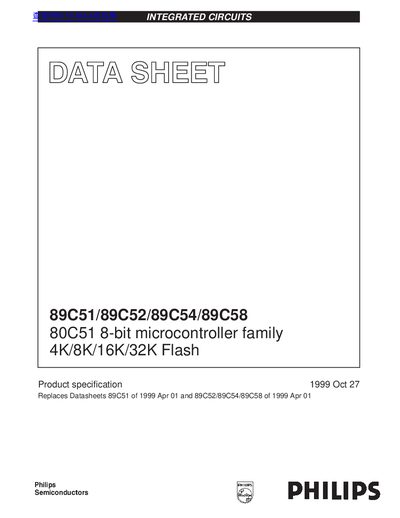

PHILIPS 89C51/89C52/89C54/89C58 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash Data Sheet

This document describes the 80C51 8-bit microcontroller family, including the 89C51/89C52/89C54/89C58 models with 4K/8K/16K/32K Flash memory, manufactured by Philips Semiconductors. It provides an overview of their features and characteristics.

Brand: Philips
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 33
File format: PDF
File size: 225 KB
Published: 05 June, 2012
Updated: 29 September, 2023
Models: 80C51, 89C51, 89C52, 89C54, 89C58
MD5 checksum: 770590B8BA6394F16A826B6122659108
PDF: PHILIPS 89C51/89C52/89C54/89C58 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash Data Sheet PDF

About this manual

This document is a product specification datasheet for the Philips 89C51/89C52/89C54/89C58 family of Single-Chip 8-bit Microcontrollers. These devices are derivatives of the 80C51 microcontroller family and feature non-volatile FLASH program memory that is parallel programmable.

What's inside

Description
Features
Selection Table for Flash Devices
Ordering Information
Block Diagram
Pin Configurations
Pin Descriptions

Specifications

Operating Frequency	up to 33 MHz
Program Memory Type	non-volatile FLASH
RAM Size	128 bytes (expandable to 64 k)
Interrupt Sources	6 interrupt sources
I/O Ports	Four 8-bit I/O ports

Frequently asked questions

What is the maximum operating frequency for these microcontrollers?

The devices support a speed up to 33 MHz.

How many interrupt sources are available on this chip?

There are six interrupt sources provided in the device.

What voltage is required for programming the Flash memory?

The EA pin receives a 12.00 V programming supply voltage during FLASH programming.
