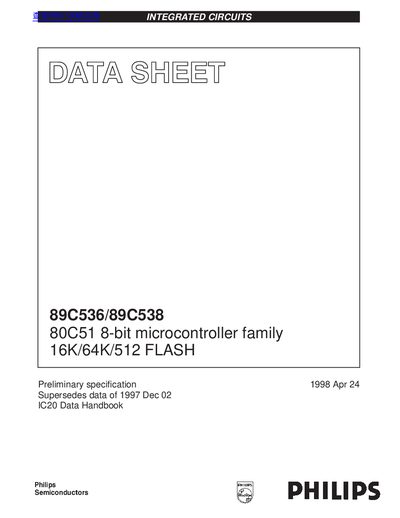

PHILIPS 89C536/89C538 80C51 8-bit microcontroller family 16K/64K/512 FLASH handbook
This document is a preliminary specification datasheet for the Philips 89C536/89C538 family of single-chip 8-bit microcontrollers. These devices are derivatives of the 80C51 family and feature an advanced CMOS process with non-volatile FLASH program memory (16k bytes for the 89C536 and 64k bytes for the 89C538) and 512 bytes of RAM data memory.
Read onlinePhilips 89C536 specifications
| Program Memory Size | 8K bytes (89C535), 16k bytes (89C536), 64k bytes (89C538) |
|---|---|
| RAM Size | 512 bytes |
| I/O Ports | Four 8-bit I/O ports |
| Interrupt Sources | 6 interrupt sources with 2 priority levels |
| Packages | 44-pin PLCC and QFP |
| Temperature Range | 0 to +70 °C |
All Philips 89C536 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature range for the P89C536NBA and P89C538NBA models?
The operating temperature range for these specific part numbers is 0 to +70 degrees Celsius.
From: PHILIPS 89C536/89C538 80C51 8-bit microcontroller family 16K/64K/512 FLASH handbook
How many bytes of RAM data memory do the 89C536/89C538 contain?
The devices have 512 bytes of RAM data memory.
From: PHILIPS 89C536/89C538 80C51 8-bit microcontroller family 16K/64K/512 FLASH handbook
What is the memory size of the 89C535?
The 89C535 has 8k x 8 FLASH EPROM program memory.
What packages are available for these microcontrollers?
They are available in 44-pin Plastic Leaded Chip Carrier and 44-pin Plastic Quad Flat Package.
