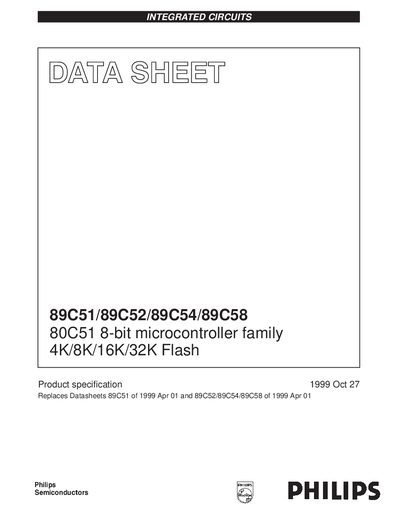

Philips 89C51/89C52/89C54/89C58 Microcontroller Product Specification Datasheet

89C51/89C52/89C54/89C58 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash Product specification

Brand: Philips
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 32
File format: PDF
File size: 226 KB
Published: 06 June, 2012
Updated: 30 September, 2023
Models: 89C51, 89C52, 89C54, 89C58
MD5 checksum: E2D486BE0FA97D6D9159C7A371F79937
PDF: Philips 89C51/89C52/89C54/89C58 Microcontroller Product Specification Datasheet PDF

About this manual

This document is a product specification for the Philips 89C51/89C52/89C54/89C58, which are Single-Chip 8-bit Microcontrollers derived from the 80C51 family. These devices contain non-volatile FLASH program memory that is parallel programmable and operate at speeds up to 33 MHz.

What's inside

Description
Selection Table for Flash Devices
Ordering Information
Block Diagram
Pin Configurations
Pin Functions
Pin Descriptions

Specifications

CPU Architecture	80C51 Central Processing Unit
Program Memory Type	On-chip FLASH Program Memory
Maximum Operating Frequency	33 MHz
Operation Mode	Full static operation
Interrupt Sources	6 interrupt sources
I/O Ports	Four 8-bit I/O ports
Timers	3 16-bit timers

Frequently asked questions

What is the maximum operating frequency for these microcontrollers?

The devices support a speed up to 33 MHz.

How many interrupt sources are available in this family?

There are six interrupt sources provided by the device.
