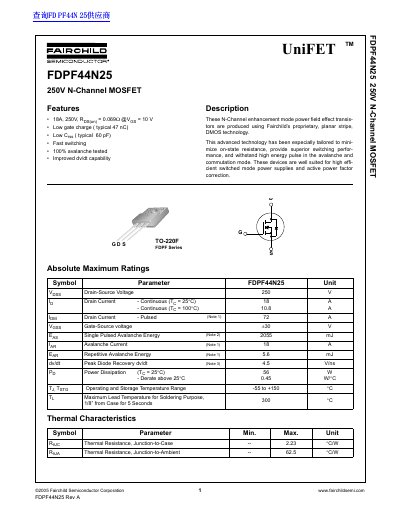

Fairchild FDPF44N25 N-Channel MOSFET Datasheet
Datasheet 7 pages · 841 KB · EN
This document is a technical datasheet for the Fairchild FDPF44N25, an N-Channel enhancement mode power field effect transistor. The device utilizes Fairchild's proprietary planar stripe DMOS technology to minimize on-state resistance and provide superior switching performance. It is designed for high-efficiency switched-mode power supplies and active power factor correction applications.
Read onlineFairchild FDPF44N25 specifications
| Drain-Source Voltage | 250 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 18 A |
| Pulsed Drain Current | 72 A |
| Gate-Source Voltage | +30 V |
| Single Pulsed Avalanche Energy | 2055 mJ |
| Power Dissipation (Tc = 25°C) | 56 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
All Fairchild FDPF44N25 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum single pulsed avalanche energy?
The device can withstand a single pulsed avalanche energy of up to 2055 mJ.
What is the maximum operating and storage temperature range?
The device operates and stores within a temperature range of -55 to +150 °C.
What is the operating and storage temperature range for these devices?
The operating and storage temperature range is from -55 to +150 °C.
From: Fairchild FDP44N25/FDPF44N25T 250V N-Channel MOSFET Datasheet
