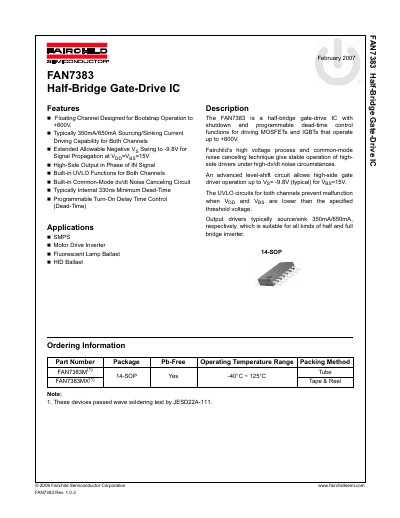

Fairchild Semiconductor FAN7383 Half-Bridge Gate-Drive IC Datasheet
The FAN7383 is a half-bridge gate-drive IC designed for driving MOSFETs and IGBTs that operate up to +600V. It features floating channel operation designed for bootstrap operation and includes built-in UVLO functions for both channels to prevent malfunction under low voltage conditions. The device incorporates a common-mode dv/dt noise canceling circuit to ensure stable operation of high-side drivers under high-dv/dt noise circumstances.
Read onlineFairchild FAN7383 specifications
| Operating Voltage Range | +600V |
|---|---|
| Sourcing Current | 350mA |
| Sinking Current | 650mA |
| Negative Vg Swing | -9.8V |
| Minimum Dead-Time | 330ns |
Source: Fairchild Semiconductor FAN7383 Half-Bridge Gate-Drive IC Datasheet
All Fairchild FAN7383 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the FAN7383 include noise canceling circuitry?
Yes, it includes a built-in common-mode dv/dt noise canceling circuit for stable operation under high-dv/dt noise.
From: Fairchild Semiconductor FAN7383 Half-Bridge Gate-Drive IC Datasheet
What is the minimum internal dead-time of the FAN7383?
The device typically has an internal minimum dead-time of 330ns.
From: Fairchild Semiconductor FAN7383 Half-Bridge Gate-Drive IC Datasheet
Does the FAN73832 include a noise canceling circuit?
Yes, it includes a built-in common-mode dv/dt noise canceling circuit.
From: Fairchild Semiconductor FAN73832 Half-Bridge Gate-Drive IC Datasheet
What is the maximum high-side floating supply voltage for the FAN73832?
The device can operate with a high-side floating supply voltage up to 600 V.
From: Fairchild Semiconductor FAN73832 Half-Bridge Gate-Drive IC Datasheet
What are the typical applications for the FAN73833?
The FAN73833 is suitable for SMPS, motor drive inverters, fluorescent lamp ballasts, and HID ballasts.
