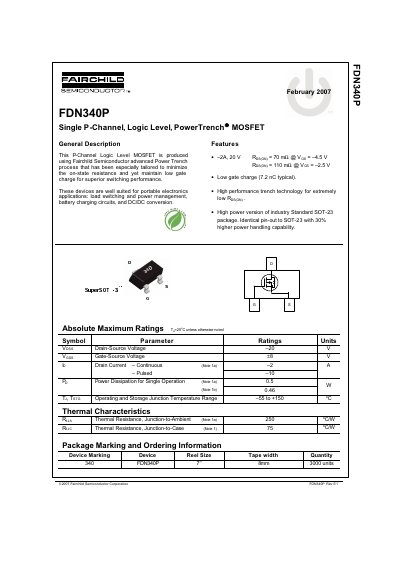

Fairchild FDN340P Single P-Channel MOSFET Datasheet
The document describes the Fairchild Semiconductor FDN340P, a single P-Channel Logic Level PowerTrench MOSFET. It is designed to minimize on-state resistance while maintaining low gate charge for superior switching performance in portable electronics applications such as load switching and DC/DC conversion.
Key specifications include a drain-source voltage rating of -20V, a continuous drain current of -2A, and an on-resistance (Rds(on)) of 70 mΩ at Vgs = -4.5V. The device is housed in a SuperSOT-3 package with identical pin-out to the standard SOT-23 but offers 30% higher power handling capability.
Fairchild FDN340P specifications
| Drain-Source Voltage (Vdss) | -20 V |
|---|---|
| Gate-Source Voltage (Vgs) | +8 V |
| Continuous Drain Current (Id) | -2 A |
| Power Dissipation (Single Operation) | 0.5 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| On-Resistance (Vgs = -4.5V) | 70 mΩ |
| Total Gate Charge (Qg) | 7.2 nC |
All Fairchild FDN340P documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What applications are these MOSFETs well suited for?
These devices are well suited for portable electronics applications such as load switching, power management, battery charging circuits, and DC/DC conversion.
What is the maximum continuous drain current for the FDN340P?
The maximum continuous drain current is -2 A.
What is the typical gate charge of the FDN340P?
The typical gate charge is 7.2 nC.
What is the typical gate charge of the FDN340P?
The typical gate charge is 7.2 nC.
What temperature range is the device rated for?
The device is rated for –55 °C to +150 °C operating and storage temperature.
What is the maximum drain‑source voltage rating for the FDN340P?
The FDN340P is rated for a maximum drain‑source voltage of -20 V.
From: Fairchild FDN340P Single P-Channel Logic Level PowerTrench MOSFET Datasheet
