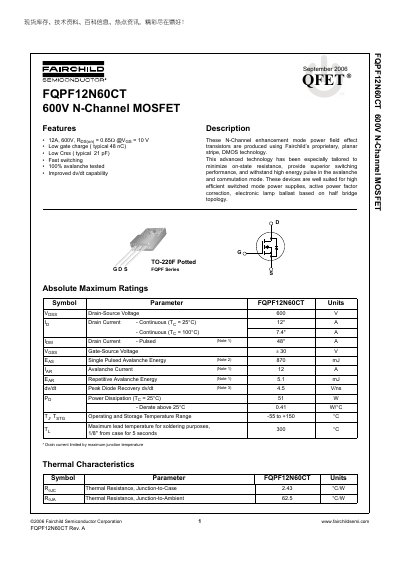

Fairchild FQPF12N60CT 600V N-Channel MOSFET Datasheet
The FQPF12N60CT is a 600 V N‑Channel enhancement‑mode MOSFET designed for high‑efficiency switched‑mode power supplies, active power factor correction and half‑bridge lamp ballast applications. It uses Fairchild's planar stripe DMOS technology to achieve low on‑resistance, fast switching and robust avalanche capability.
Key specifications include a 600 V drain‑source rating, 12 A continuous drain current, 0.65 Ω RDS(on) at VGS=10 V, typical gate charge of 48 nC and Crss of 21 pF. The datasheet also provides thermal characteristics, electrical limits, test circuit diagrams and package dimensions for the TO‑220F package.
Fairchild FQPF12N60C specifications
| Drain‑Source Voltage (VDS) | 600 V |
|---|---|
| Continuous Drain Current (ID) | 12 A |
| On‑Resistance (RDS(on)) | 0.65 Ω @ VGS=10 V |
| Typical Gate Charge (Qg) | 48 nC |
| Typical Reverse Transfer Capacitance (Crss) | 21 pF |
| Power Dissipation (PD) at 25 °C | 51 W |
| Junction‑to‑Case Thermal Resistance (RθJC) | 2.43 °C/W |
| Junction‑to‑Ambient Thermal Resistance (RθJA) | 62.5 °C/W |
