Start here

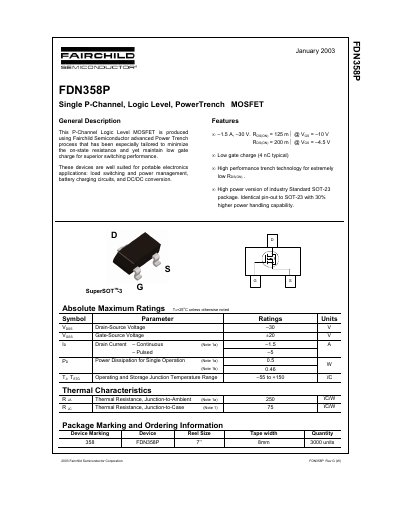

Fairchild FDN358P Single P-Channel MOSFET Datasheet
The document describes the Fairchild Semiconductor FDN358P, a Single P-Channel Logic Level PowerTrench® MOSFET. This device utilizes advanced Power Trench process technology to minimize on-state resistance while maintaining low gate charge for superior switching performance.
It is well-suited for portable electronics applications such as load switching, power management, battery charging circuits, and DC/DC conversion. The FDN358P features a SuperSOT™3 package with an identical pin-out to the standard SOT-23 but offers 30% higher power handling capability.
Fairchild FDN358P specifications
| Drain-Source Voltage | -30 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Gate Charge | 4 nC (Typical) |
All Fairchild FDN358P documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the portable electronics applications this MOSFET is suited for?
This device is well suited for load switching and power management, battery charging circuits, and DC/DC conversion.
What is the maximum drain‑source voltage rating for the FDN358P?
The device is rated for a maximum drain‑source voltage of -30 V.
From: Fairchild FDN358P P-Channel Logic Level Enhancement Mode Field Effect Transistor Datasheet
What continuous drain current can the FDN358P handle?
It can conduct a continuous drain current of 15 A.
From: Fairchild FDN358P P-Channel Logic Level Enhancement Mode Field Effect Transistor Datasheet
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of -30 V.
From: Fairchild FDN358P P-Channel Logic Level Enhancement Mode MOSFET Datasheet
What continuous drain current can the FDN358P handle?
It can conduct a continuous drain current of 15 A.
From: Fairchild FDN358P P-Channel Logic Level Enhancement Mode MOSFET Datasheet
