Start here

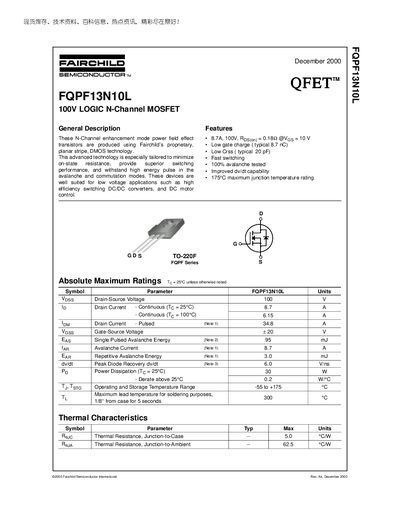

Fairchild FQPF13N10L MOSFET Datasheet
The FQPF13N10L is a 100 V logic N‑Channel MOSFET built with Fairchild’s DMOS planar stripe technology. It is designed for low‑voltage, high‑efficiency switching applications such as DC‑DC converters and motor control.
Key features include an 8.7 A continuous drain current at 25 °C, low gate charge (≈8.7 nC), low output capacitance (≈20 pF), fast switching, 100 % avalanche testing, and a maximum junction temperature of 175 °C. The device is supplied in a TO‑220F package with detailed thermal and electrical characteristics provided in the datasheet.
Fairchild FQPF13N10 specifications
| Drain‑Source Voltage (V_DSS) | 100 V |
|---|---|
| Continuous Drain Current (I_D) @ 25 °C | 8.7 A |
| Pulsed Drain Current | 34.8 A |
| Gate‑Source Voltage (V_GS) | ±20 V |
| Maximum Power Dissipation @ 25 °C | 30 W |
| Operating Temperature Range | -55 °C to +175 °C |
| Thermal Resistance Junction‑to‑Case | 5.0 °C·W |
| Thermal Resistance Junction‑to‑Ambient | 62.5 °C·W |
All Fairchild FQPF13N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage for the FQPF13N10L?
The device is rated for a maximum drain‑source voltage of 100 V.
What continuous drain current can the FQPF13N10L handle at 25 °C?
It can conduct up to 8.7 A continuously at a case temperature of 25 °C.
What is the maximum continuous drain current at 25 °C?
The maximum continuous drain current at 25 °C is 8.7 A.
What is the rated maximum junction temperature?
The device is rated for a maximum junction temperature of 175 °C.
What is the maximum drain‑source voltage for the FQPF13N10?
The device is rated for a maximum drain‑source voltage of 100 V.
What continuous drain current can the FQPF13N10 handle at 25 °C?
It can conduct up to 8.7 A continuously at a junction temperature of 25 °C.
