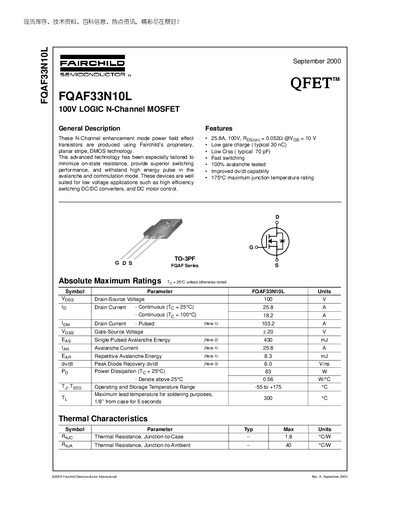

Fairchild FQAF33N10L 100V Logic N-Channel MOSFET Datasheet
The FQAF33N10L is a 100 V logic‑level N‑Channel MOSFET built with Fairchild’s DMOS planar stripe technology. It offers low on‑resistance, low gate charge, fast switching and high avalanche capability, making it suitable for low‑voltage DC‑DC converters and motor‑control applications.
The document provides absolute maximum ratings, thermal characteristics, detailed electrical parameters, switching behavior, and mechanical dimensions for the TO‑3PF package, along with trademark and disclaimer information.
Fairchild FQAF33N10 specifications
| Drain‑Source Voltage (VDS) | 100 V |
|---|---|
| Continuous Drain Current (Id) @ 25°C | 25.8 A |
| Pulsed Drain Current (Id) (Note 1) | 103.2 A |
| On‑Resistance (RDS(on)) typical @ VGS=10 V | 0.0520 Ω |
| Typical Gate Charge (Qg) | 30 nC |
| Reverse Transfer Capacitance (Crss) typical | 70 pF |
| Maximum Junction Temperature (Tj) | 175 °C |
| Thermal Resistance, Junction‑to‑Case (RθJC) | 1.8 °C/W |
| Power Dissipation (PD) @ 25°C | 83 W |
