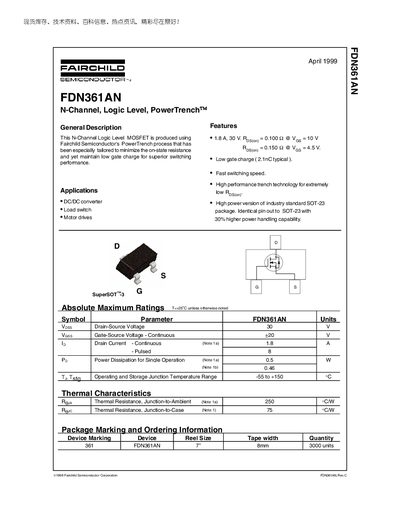

Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
The FDN361AN is a logic‑level N‑Channel PowerTrench MOSFET designed for load‑switch and motor‑drive applications. It features a low on‑state resistance and a low gate charge of about 2.1 nC, providing fast switching performance.
Key electrical specifications include a 30 V drain‑source breakdown voltage, +20 V gate‑source rating, 18 A continuous drain current, and a typical on‑resistance of around 0.07 Ω. The device is supplied in the SuperSOT‑3 package, which has the same pinout as SOT‑23 but with 30 % higher power handling capability.
Fairchild FDN361AN specifications
| Drain‑Source Voltage (VDS) | 30 V |
|---|---|
| Gate‑Source Voltage (VGS) | +20 V (continuous) |
| Continuous Drain Current (ID) | 18 A |
| Power Dissipation (PD) | 0.5 W |
| Typical Gate Charge (Qg) | 2.1 nC |
Source: Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
All Fairchild FDN361AN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage for the FDN361AN?
The device is rated for a maximum drain‑source voltage of 30 V.
From: Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the typical gate charge of the FDN361AN?
The typical gate charge is 2.1 nC.
From: Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the maximum drain‑source voltage for the FDN361AN?
The device is rated for a maximum drain‑source voltage of 30 V.
From: Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
What continuous drain current can the FDN361AN handle?
It can conduct up to 18 A continuously.
From: Fairchild FDN361AN N-Channel Logic Level PowerTrench MOSFET Datasheet
