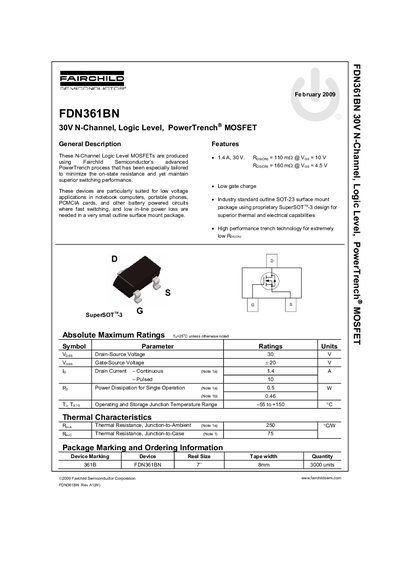

Fairchild Semiconductor FDN361BN N-Channel MOSFET Datasheet
The document describes the Fairchild Semiconductor FDN361BN, an N-channel logic level MOSFET produced using the advanced PowerTrench process. These devices are designed to minimize on-state resistance while maintaining superior switching performance for low voltage applications such as notebook computers and portable phones.
Key features include a 14A continuous drain current rating, a maximum operating temperature of +150°C, and an industry-standard SOT-23 surface mount package. The datasheet provides detailed electrical characteristics, thermal data, and typical performance curves.
Fairchild FDN361BN specifications
| Drain-Source Voltage (Vdss) | 30 V |
|---|---|
| Gate-Source Voltage (Vgss) | +20 V |
| Pulsed Drain Current (Id) | 10 A |
| Operating Junction Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FDN361BN N-Channel MOSFET Datasheet
All Fairchild FDN361BN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the FDN361BN?
The device uses an industry standard outline SOT-23 surface mount package.
From: Fairchild Semiconductor FDN361BN N-Channel MOSFET Datasheet
What is the maximum operating temperature?
The operating and storage junction temperature range is from -55 to +150 °C.
From: Fairchild Semiconductor FDN361BN N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 30 V.
From: Fairchild FDN361BN 30V N-Channel Logic Level PowerTrench MOSFET Datasheet
What continuous drain current can the FDN361BN handle?
It can conduct up to 1.4 A continuously.
From: Fairchild FDN361BN 30V N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The MOSFET can withstand up to 30 V between drain and source.
From: Fairchild FDN361BN 30V N-Channel Logic Level PowerTrench MOSFET Datasheet
What continuous drain current can the device handle?
It is rated for a continuous drain current of 1.4 A.
From: Fairchild FDN361BN 30V N-Channel Logic Level PowerTrench MOSFET Datasheet
