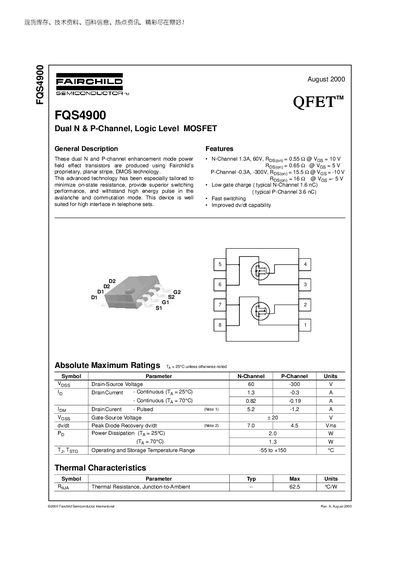

Fairchild FQS4900 Dual N & P-Channel MOSFET Datasheet
The FQS4900 is a dual N‑ and P‑channel enhancement‑mode power MOSFET produced with Fairchild’s planar stripe DMOS technology. It is designed for low on‑state resistance, fast switching, and high energy‑pulse capability, making it suitable for telephone set interfaces and other applications.
The document lists absolute maximum ratings, detailed electrical characteristics, typical performance curves, and package dimensions (8‑SOP). It also includes trademark information, disclaimer, and product status definitions.
Fairchild FQS4900 specifications
| Drain‑Source Voltage (VDS) N‑Channel | 60 V |
|---|---|
| Drain‑Source Voltage (VDS) P‑Channel | -300 V |
| Continuous Drain Current (ID) at 25 °C N‑Channel | 1.3 A |
| Continuous Drain Current (ID) at 25 °C P‑Channel | -0.3 A |
| On‑Resistance (RDS(on)) N‑Channel | 0.55 Ω (VGS=10 V) |
| Total Gate Charge (Qg) N‑Channel | 1.6 nC |
| Power Dissipation (PD) at 25 °C | 2.0 W |
| Thermal Resistance (RθJA) | 62.5 °C/W |
| Package | 8‑SOP |
Source: Fairchild FQS4900 Dual N & P-Channel MOSFET Datasheet
