Start here

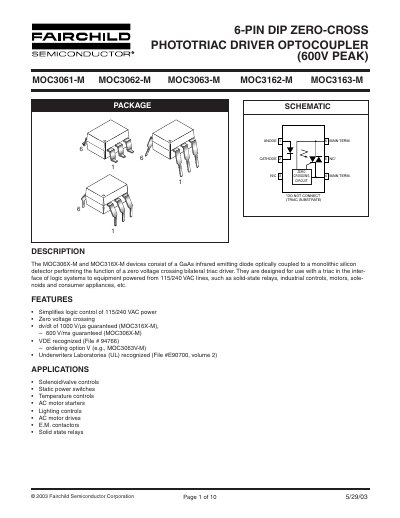

FAIRCHILD MOC3061-M MOC3062-M MOC3063-M MOC3162-M MOC3163-M handbook
The document describes the MOC306X-M and MOC316X-M devices, which consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector. These components function as zero voltage crossing bilateral triac drivers designed for interfacing logic systems with 115/240 VAC powered equipment.
Read onlineFairchild MOC3061-M specifications
| Peak Repetitive Surge Current | 1 A (PW = 100 µs, 120 pps) |
|---|---|
| Off-State Output Terminal Voltage | 600 V Peak |
| Isolation Surge Voltage | 7500 Vac(pk) |
| Operating Temperature Range | -40 to +85 °C |
Source: FAIRCHILD MOC3061-M MOC3062-M MOC3063-M MOC3162-M MOC3163-M handbook
All Fairchild MOC3061-M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended operating current for MOC3061-M?
The recommended operating I F lies between 15 mA and the absolute max of 60 mA.
From: FAIRCHILD MOC3061-M MOC3062-M MOC3063-M MOC3162-M MOC3163-M handbook
What is the maximum operating temperature for this device?
The absolute maximum operating temperature is +85°C.
From: FAIRCHILD MOC3061-M MOC3062-M MOC3063-M MOC3162-M MOC3163-M handbook
What is the isolation voltage rating of the MOC3061‑M series?
The devices are rated for a 7500 V peak isolation voltage.
What LED trigger current should be used for the MOC3061‑M?
A typical LED trigger current is 15 mA for the MOC3061‑M; 10 mA for MOC3062‑M and MOC3162‑M; 5 mA for MOC3063‑M and MOC3163‑M.
