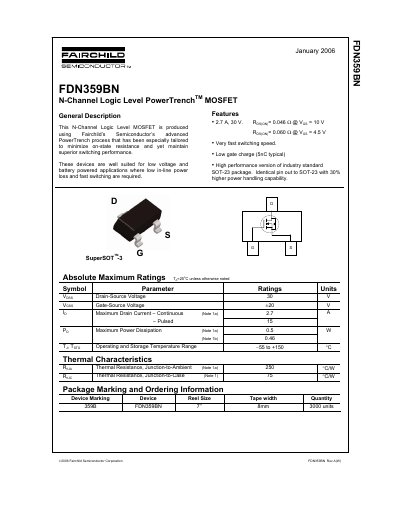

Fairchild FDN359BN N-Channel Logic Level MOSFET Datasheet
The document describes the Fairchild FDN359BN, an N-Channel Logic Level MOSFET produced using the advanced PowerTrench process. It is designed for low voltage and battery-powered applications requiring low on-state resistance and fast switching speeds.
The device features a SuperSOT-3 package with identical pin-out to SOT-23 but offers 30% higher power handling capability. Key electrical characteristics include a maximum drain current of 2.7A, a breakdown voltage of 30V, and low gate charge typical values.
Fairchild FDN359BN specifications
| Drain-Source Voltage (Vss) | 30 V |
|---|---|
| Maximum Continuous Drain Current | 2.7 A |
| Package Type | SuperSOT-3 |
| Operating Temperature Range | -55 to +150 °C |
Source: Fairchild FDN359BN N-Channel Logic Level MOSFET Datasheet
All Fairchild FDN359BN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on-state resistance at Vgs = 4.5V?
The typical on-state resistance (Rds(on)) is 0.060 Ω when Vgs is 4.5V.
From: Fairchild FDN359BN N-Channel Logic Level MOSFET Datasheet
Is the FDN359BN compatible with SOT-23 pinout?
Yes, it has an identical pin-out to SOT-23.
From: Fairchild FDN359BN N-Channel Logic Level MOSFET Datasheet
What is the maximum drain‑source voltage for the FDN359BN?
The device is rated for a maximum drain‑source voltage of 30 V.
From: Fairchild FDN359BN N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the typical gate charge of the FDN359BN?
The typical gate charge is about 5 nC.
From: Fairchild FDN359BN N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the maximum continuous drain current for the FDN359BN?
The datasheet lists a continuous drain current of 2.7 A.
From: Fairchild FDN359BN N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the maximum gate‑source voltage rating?
The MOSFET can tolerate up to +20 V between gate and source.
From: Fairchild FDN359BN N-Channel Logic Level PowerTrench MOSFET Datasheet
