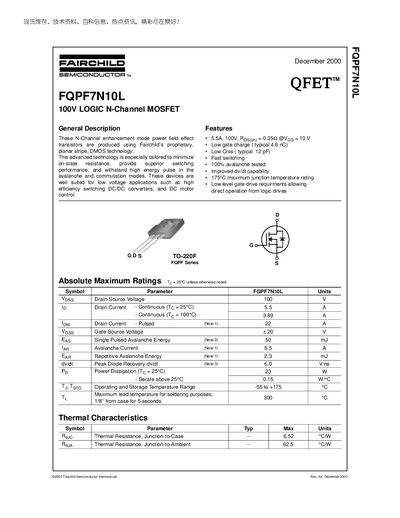

Fairchild FQPF7N10L Datasheet
The FQPF7N10L is a 100 V logic N‑Channel MOSFET built with Fairchild's planar stripe DMOS technology, offering low on‑state resistance, fast switching, and high avalanche capability. It is suited for low‑voltage applications such as high‑efficiency DC‑DC converters and motor control.
Key specifications include a continuous drain current of 5.5 A at 25 °C, a pulsed drain current rating of 22 A, a typical on‑resistance of 0.352 Ω at VGS=10 V, and a total gate charge of about 6 nC. The device operates from –55 °C to +175 °C and features a maximum junction temperature of 175 °C.
Fairchild FQPF7N10 specifications
| Drain‑Source Voltage (V_DSS) | 100 V |
|---|---|
| Continuous Drain Current (I_D) @ 25 °C | 5.5 A |
| Pulsed Drain Current (I_D) @ 25 °C | 22 A |
| Gate Threshold Voltage (V_GS(th)) typical | 1.0 V |
| On‑Resistance (R_DS(on)) typical | 0.352 Ω @ V_GS=10 V |
Source: Fairchild FQPF7N10L Datasheet
All Fairchild FQPF7N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 100 V.
What continuous drain current can the FQPF7N10L handle at 25 °C?
It can conduct up to 5.5 A continuously at a case temperature of 25 °C.
What is the maximum junction temperature for the FQPF7N10L?
The device is rated for a maximum junction temperature of 175 °C.
From: Fairchild FQPF7N10L 100V Logic N-Channel MOSFET Datasheet
What is the typical gate charge of the FQPF7N10L?
The typical gate charge is 4.6 nC.
From: Fairchild FQPF7N10L 100V Logic N-Channel MOSFET Datasheet
What is the maximum continuous drain current?
The device can handle 5.5 A continuous drain current at a junction temperature of 25 °C.
What is the typical gate charge of the FQPF7N10?
The typical gate charge is 5.8 nC.
