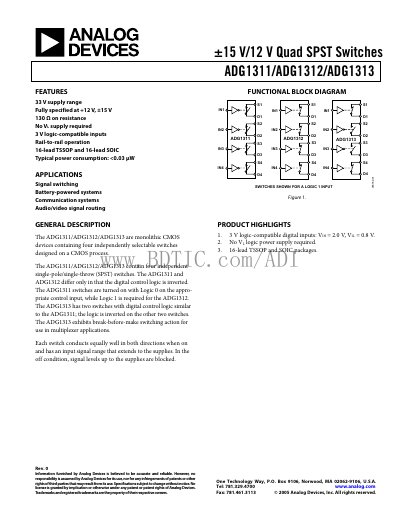

The ADG1311/ADG1312/ADG1313 are quad SPST switches with features such as 3V logic-compatible inputs and operation within a voltage range of +12V, ±15V.
The ADG1311, ADG1312, and ADG1313 are monolithic CMOS devices that contain four independently selectable single‑pole/single‑throw (SPST) switches. They operate with a supply range of up to ±15 V, feature 3 V logic‑compatible inputs, and require no separate logic‑power supply. The devices are offered in 16‑lead TSSOP and 16‑lead SOIC packages and are suited for signal switching in battery‑powered, communication, and audio/video routing applications.
The datasheet includes detailed electrical specifications such as on‑resistance, leakage currents, dynamic characteristics, and absolute maximum ratings. It also provides pin‑out diagrams, functional block diagrams, typical performance curves, and an ordering guide that lists temperature ranges and package options for each part number.
| Dual‑supply voltage range | Vop = +15 V ±10 %, Vss = –15 V ±10 % |
|---|---|
| Typical power consumption | <0.03 pW |
| Package options | 16‑lead TSSOP and 16‑lead SOIC |
| –3 dB bandwidth (dual supply) | 600 MHz typ |
Both 16‑lead TSSOP and 16‑lead SOIC packages are offered.
The devices support Vop = +15 V ±10 % and Vss = –15 V ±10 %.
