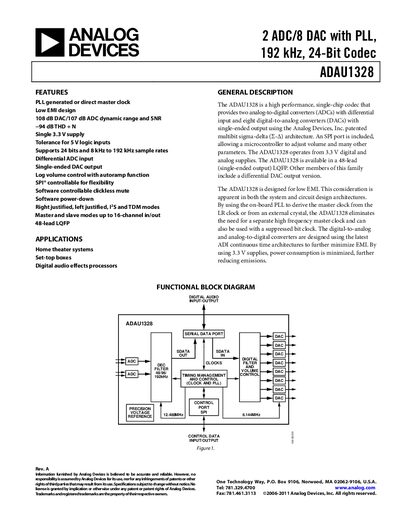

The ADAU1328 is a high performance single-chip codec that provides two analog-to-digital converters (ADCs) with differential input and eight digital-to-analog converters (DACs), supporting 24 bits and 8 kHz to 192 kHz sample rates.
The ADAU1328 codec from Analog Devices provides two differential ADCs and eight single‑ended DACs in a single 48‑lead LQFP package. It features an on‑chip PLL for master‑clock generation, low‑EMI design, and operates from a single 3.3 V supply.
The document includes detailed specifications, functional block diagrams, timing information, absolute maximum ratings, and ordering details, making it a comprehensive reference for designers integrating the codec into audio systems such as home‑theater, set‑top boxes, and digital audio processors.
| ADC Resolution | 24 Bits |
|---|---|
| DAC Dynamic Range (A‑Weighted Avg) | 108 dB |
| Supply Voltage (AVDD/DVDD) | 3.3 V |
| Package | 48‑Lead LQFP |
| Maximum Sample Rate | 192 kHz |
The codec operates from a single 3.3 V supply for both analog and digital sections.
The DAC provides a dynamic range of 108 dB when using the A‑weighted filter.
It supports sample rates up to 192 kHz.
The device is available in a 48‑lead low‑profile quad flat package (LQFP).
