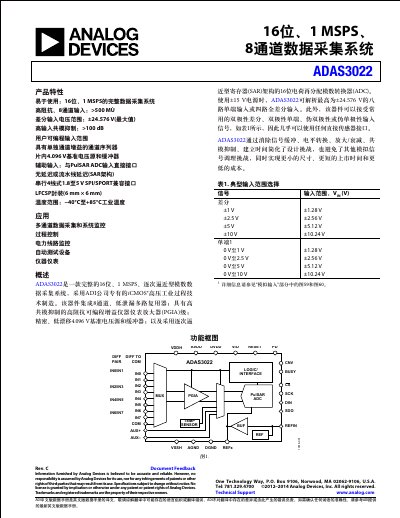

The ADAS3022 is a 16‑bit, 1 MSPS, 8‑channel data acquisition system with programmable gain, internal 4.096 V reference and ±24.576 V input range.
The ADAS3022 is a complete data‑acquisition system that integrates an 8‑channel low‑leakage multiplexer, a high‑impedance programmable‑gain instrumentation amplifier (PGIA), a precision 4.096 V reference, and a 16‑bit SAR ADC. It operates from a ±15 V supply and supports differential or single‑ended inputs up to ±24.576 V.
Designed for industrial and instrumentation applications, the device offers up to 1 MSPS conversion rate, 500 MΩ input impedance, and a temperature range of –40 °C to +85 °C. It is available in a 6 mm × 6 mm LFCSP package and includes extensive digital interfaces (SPI/SPORT) for easy integration. This manual is written in Chinese.
| Resolution | 16 bit |
|---|---|
| Maximum Sampling Rate | 1 MSPS |
| Input Impedance | 500 MΩ |
| Input Voltage Range (max) | ±24.576 V |
| Power Supply (VDDH / VSSH) | ±15 V ±5 % |
| Core Supply (AVDD / DVDD) | 5 V ±5 % |
| I/O Supply (VIO) | 1.8 V to AVDD |
| Reference Voltage | 4.096 V |
| Temperature Range | –40 °C to +85 °C |
| Power Consumption | 2 W |
| Package | LFCSP 6 mm × 6 mm (40‑pin) |
It can accept up to ±24.576 V (maximum) when powered from a ±15 V supply.
Each channel has an input impedance of 500 MΩ.
When all eight channels are active, the total conversion rate is 1 MSPS, giving 125 kSPS per channel.
The ADAS3022 operates from –40 °C to +85 °C.
