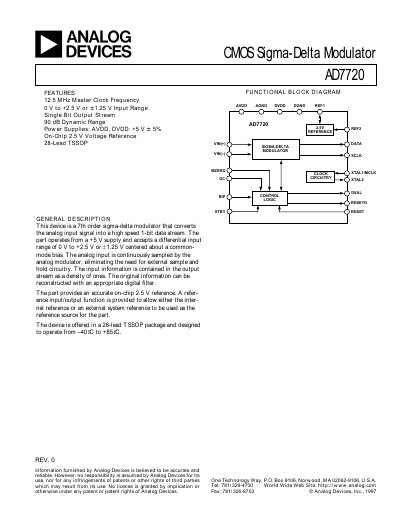

Analog Devices AD7720 Datasheet
The AD7720 sigma‑delta modulator converts analog signals to a high‑speed 1‑bit data stream. It operates from a +5 V supply, accepts differential inputs of 0 V to +2.5 V (or ±1.25 V) and includes an on‑chip 2.5 V reference. The device is offered in a 28‑lead TSSOP package and is rated for –40 °C to +85 °C operation.
Key features include a 12.5 MHz master clock, 16‑bit resolution, 90 dB dynamic range, and low‑power standby mode. Detailed pin functions, timing characteristics, and calibration procedures are provided for designers.
Analog Devices AD7720 specifications
| Master Clock Frequency | 12.5 MHz |
|---|---|
| Input Range | 0 V to +2.5 V (unipolar) or ±1.25 V (bipolar) |
| Dynamic Range | 90 dB |
| Resolution | 16 Bits |
| Power Supply | AVDD/DVDD +5 V ±5 % |
| On‑chip Reference Voltage | 2.5 V |
Source: Analog Devices AD7720 Datasheet
All Analog Devices AD7720 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input sampling capacitance?
The typical input sampling capacitance is 2 pF.
What is the maximum input voltage the AD7720 can tolerate?
The maximum input voltage is limited to the AVDD supply voltage.
What input voltage ranges does the AD7720 support?
It supports a unipolar range of 0 V to +2.5 V and a bipolar range of ±1.25 V.
What package type is the AD7720 offered in?
The device is offered in a 28‑lead TSSOP package.
