Start here

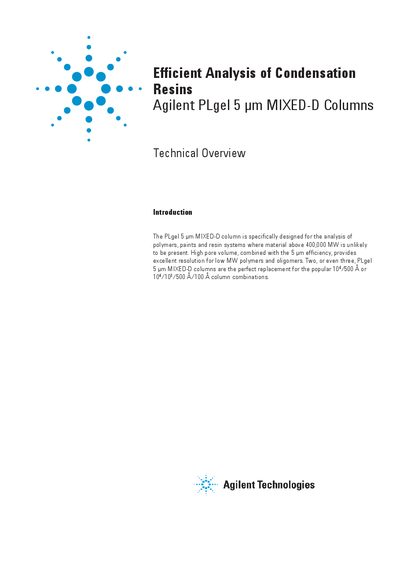

Agilent PLgel 5 um MIXED-D Columns Technical Overview
The PLgel 5 um MIXED-D column is specifically designed for the analysis of polymers, paints, and resin systems where material above 400,000 MW is unlikely to be present. It features high pore volume combined with 5 um efficiency to provide excellent resolution for low molecular weight polymers and oligomers.
Read onlineAgilent PLgel 5 µm specifications
| Particle Size | 5 um |
|---|---|
| Pore Volume | High pore volume |
| Target Molecular Weight | Below 400,000 MW |
| Recommended Column Set | 2 x PLgel 5 um MIXED-D, 300 x 7.5 mm |
| Recommended Eluent | THF |
| Recommended Flow Rate | 1.0 mL/min |
| Detection Method | RI |
Source: Agilent PLgel 5 um MIXED-D Columns Technical Overview
All Agilent PLgel 5 µm documents by type
- Agilent PLgel 5 um MIXED-D Columns Technical Overview 2 p
- Agilent PLgel 5 um MIXED-D Columns Technical Overview 2 p
- Agilent PLgel 5 um MIXED-D Columns Technical Overview 2 p
- Agilent PLgel 5 µm MIXED-C Columns Technical Overview 2 p
- Agilent PLgel 5 µm Effect of Injection Volume on Oligomer Separation Technical Overview 2 p
How to use the product for one specific task, with worked examples.
- Agilent PLgel 5 µm Gel Permeation Chromatography Application Note 2 p
- Agilent PLgel 5 pm MIXED-D Polysiloxane Analysis Application Note 2 p
- Agilent PLgel 5 µm MIXED-D Polyurethane Analysis Application Note 2 p
- Agilent PLgel 5 µm Dialkyl Phthalate Analysis Application Note 2 p
- Agilent Polysiloxane Analysis Application Note 2 p
- Agilent PLgel 5 µm Oligosaccharide Analysis Application Note 2 p
Questions answered in these manuals
What types of materials is the PLgel 5 um MIXED-D column designed to analyze?
The column is specifically designed for analyzing polymers, paints, and resin systems where material above 400,000 MW is unlikely to be present.
What are the dimensions of the column used in the example resin analysis?
The example analysis uses a column with dimensions of 300 x 7.5 mm.
What types of materials are these columns designed to analyze?
The PLgel 5 um MIXED-D column is specifically designed for the analysis of polymers, paints and resin systems.
What is the recommended flow rate for using these columns?
The recommended flow rate for the analysis is 1.0 mL/min.
What is the PLgel 5 um MIXED-D column designed for?
It is designed for the analysis of polymers, paints, and resin systems where material above 400,000 MW is unlikely to be present.
Why are PLgel 5 um MIXED-D columns ideal for condensation polymers?
Because polymers produced by condensation polymerization rarely contain material above 400,000 molecular weight.
