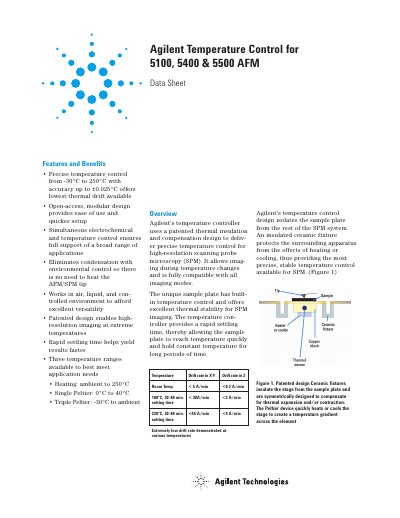

Agilent Temperature Control for 5100, 5400 & 5500 AFM Datasheet
Agilent Technologies provides a temperature controller designed for high-resolution scanning probe microscopy (SPM). This patented design utilizes thermal insulation and compensation to deliver precise temperature control, allowing imaging during temperature changes with minimal drift. The system is fully compatible with all imaging modes and eliminates condensation through environmental control.
Read onlineAgilent 5500 AFM specifications
| Temperature Range | -30°C to 250°C |
|---|---|
| Accuracy | up to +0.025°C |
| Heating Range | ambient to 250°C |
| Cooling Range (Single Peltier) | 0°C to 40°C |
| Cooling Range (Triple Peltier) | -80°C to ambient |
| Drift Rate in X-Y at Room Temp | <5 Å/min |
| Drift Rate in Z at 230°C | <4 Å/min |
Source: Agilent Temperature Control for 5100, 5400 & 5500 AFM Datasheet
All Agilent 5500 AFM documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What AFM models is this temperature controller compatible with?
It is compatible with Agilent 5100, 5400, and 5500 AFM systems.
From: Agilent Temperature Control for 5100, 5400 & 5500 AFM Datasheet
Does the controller eliminate condensation?
Yes, it eliminates condensation with environmental control so there is no need to heat the AFM/SPM tip.
From: Agilent Temperature Control for 5100, 5400 & 5500 AFM Datasheet
How long does it take to reduce the oxygen concentration in the chamber from ambient levels to below 0.1%?
It takes less than 5 minutes of continuous nitrogen purge at a pressure of 10 to 20 psi.
From: Agilent 5500 AFM Oxygen-Free High-Resolution Electrochemical SPM Application Note
How long must the nitrogen flow continue after reaching low oxygen levels to keep the chamber stabilized?
An additional 15-minute purge is needed to reach a level where oxygen is not detectable.
From: Agilent 5500 AFM Oxygen-Free High-Resolution Electrochemical SPM Application Note
