Key facts
- Brand
- Agilent
- Model
- 400 AS
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-04
Start here

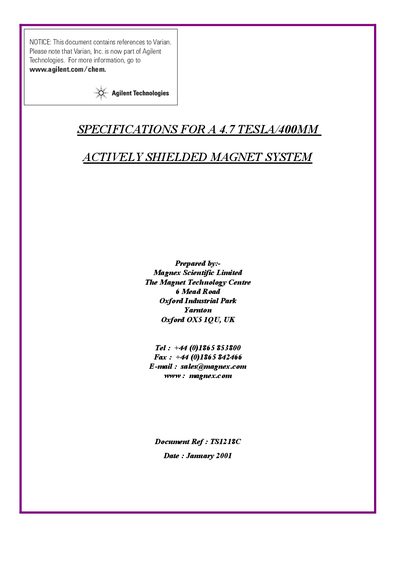

Magnex Scientific MRBR 4.7/400 AS Actively Shielded Magnet System Specifications
This document provides technical specifications for the MRBR 4.7/400 AS, a complete actively shielded superconducting magnet system intended primarily for research studies on Clinical/Biological applications of NMR Imaging (MRI) and NMR Spectroscopy (MRS). The system features a highly homogeneous 4.7 Tesla superconducting magnet housed in a horizontal room temperature bore of 400mm.
Read onlineAgilent 400 AS specifications
| Central field | 4.7 Tesla |
|---|---|
| Operating current | 283 Amps (Nominal) |
| Time to energise magnet | Less than 300 minutes |
| Length of cryostat | 1500mm |
Source: Magnex Scientific MRBR 4.7/400 AS Actively Shielded Magnet System Specifications
All Agilent 400 AS documents by type
Questions answered in these manuals
What is the primary intended use of the MRBR 4.7/400 AS system?
The system is intended primarily for research studies on the Clinical/Biological applications of NMR Imaging (MRI) and NMR Spectroscopy (MRS).
From: Magnex Scientific MRBR 4.7/400 AS Actively Shielded Magnet System Specifications
What is the central field strength of the superconducting magnet?
The central field is 4.7 Tesla.
From: Magnex Scientific MRBR 4.7/400 AS Actively Shielded Magnet System Specifications
What is the primary application of this magnet system?
The system is intended primarily for research studies on the clinical/biological applications of NMR imaging (MRI) and NMR spectroscopy (MRS).
From: Magnex MRBR 7.0/400/AS Actively Shielded Magnet System Technical Specification
What type of conductor is used in the magnet windings?
The magnet is wound from multi-filamentary NbTi conductor with a high percentage of copper to superconductor.
From: Magnex MRBR 7.0/400/AS Actively Shielded Magnet System Technical Specification
