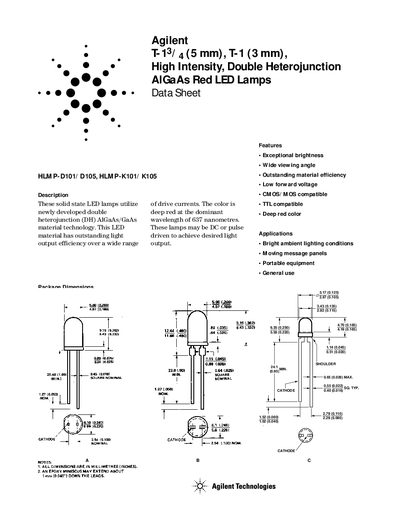

This data sheet introduces the characteristics of Agilent T-13/4 (5 mm), T-1 (3 mm), High Intensity, Double Heterojunction AlGaAs Red LED Lamps Data Sheet HLMP-D101/D105, HLMP-K101/K105.
The HLMP‑D101/D105 and HLMP‑K101/K105 are solid‑state red LED lamps that use double‑heterojunction AlGaAs/GaAs material for high brightness and efficiency. They are available in tinted‑diffused, untinted‑non‑diffused, and various mechanical options, and can be driven by DC or pulsed currents.
The document provides detailed electrical and optical characteristics, maximum ratings, intensity bin limits, mechanical packaging codes, and recommended soldering procedures for PCB assembly. Contact information for Agilent technical support and distributor listings are also included.
| Reverse Breakdown Voltage | 15.0 V |
|---|---|
| Dominant Wavelength | 637 nm |
| Speed of Response | 30 ns |
The dominant wavelength is 637 nm.
