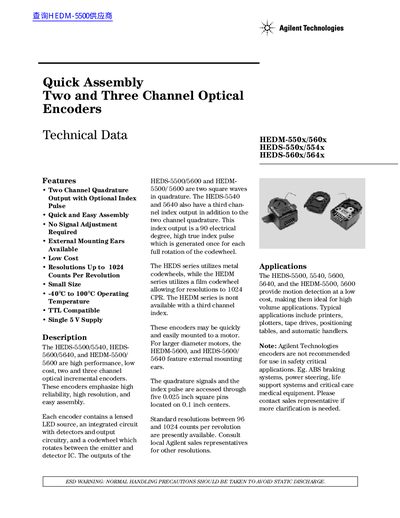

Agilent HEDM-550x/560x Optical Encoder Technical Data
The Agilent HEDM-550x/560x series are low‑cost two‑channel optical incremental encoders with optional external mounting ears. They provide high reliability, up to 1024 counts per revolution, and operate over a wide temperature range.
The document includes features, mechanical dimensions, electrical characteristics, recommended operating conditions, and mounting guidelines for quick assembly onto motor shafts.
Agilent HEDM-560X specifications
| Resolution | Up to 1024 counts per revolution |
|---|---|
| Operating Temperature | -40°C to 100°C |
| Supply Voltage | 4.5 V to 5.5 V |
| Maximum Speed | 30,000 RPM |
| High Level Output Voltage | 2.4 V |
| Output Current per Channel | -1.0 mA to 5 mA |
Source: Agilent HEDM-550x/560x Optical Encoder Technical Data
All Agilent HEDM-560X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The encoders operate from –40 °C to +100 °C.
What is the maximum resolution of the HEDM‑550x/560x series?
They can resolve up to 1024 counts per revolution.
What is the operating temperature range of these encoders?
The encoders operate from –40 °C to 100 °C.
From: Agilent HEDM-500x/560x HEDS-550x/554x HEDS-560x/564x Technical Data
What supply voltage is required?
A supply voltage of 4.5 V to 5.5 V is specified.
From: Agilent HEDM-500x/560x HEDS-550x/554x HEDS-560x/564x Technical Data
