Key facts
- Brand
- Texas Instruments
- Model
- TPS2033
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-01
Start here

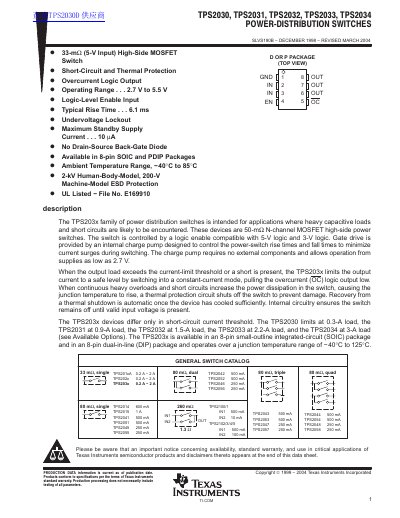

TEXAS INSTRUMENTS TPS2030 TPS2031 TPS2032 TPS2033 TPS2034 POWER-DISTRIBUTION SWITCHES handbook
The TPS203x family consists of power distribution switches intended for applications with heavy capacitive loads and potential short circuits. These devices are 50-mΩ N-channel MOSFET high-side power switches controlled by a logic enable compatible with both 5-V and 3-V logic levels.
Read onlineTexas Instruments TPS2033 specifications
| Input Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Maximum Standby Supply Current | 10 µA |
| On-State Resistance | 50 mΩ |
| Operating Junction Temperature Range | -40 °C to 125 °C |
Source: TEXAS INSTRUMENTS TPS2030 TPS2031 TPS2032 TPS2033 TPS2034 POWER-DISTRIBUTION SWITCHES handbook
All Texas Instruments TPS2033 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical rise time for the switch?
The typical rise time is 6.1 ms.
From: TEXAS INSTRUMENTS TPS2030 TPS2031 TPS2032 TPS2033 TPS2034 POWER-DISTRIBUTION SWITCHES handbook
How does the device protect against short circuits?
It limits output current to a safe level by switching into constant-current mode when an overload or short is present.
From: TEXAS INSTRUMENTS TPS2030 TPS2031 TPS2032 TPS2033 TPS2034 POWER-DISTRIBUTION SWITCHES handbook
What is the typical rise time of the switch?
The typical rise time is 6.1 ms.
From: TEXAS INSTRUMENTS TPS2030/TPS2031/TPS2032/TPS2033/TPS2034 POWER-DIS TRIBUTION SWITCHES handbook
How does the device handle overcurrent conditions?
It limits the output current to a safe level by switching into a constant-current mode.
From: TEXAS INSTRUMENTS TPS2030/TPS2031/TPS2032/TPS2033/TPS2034 POWER-DIS TRIBUTION SWITCHES handbook
