Start here

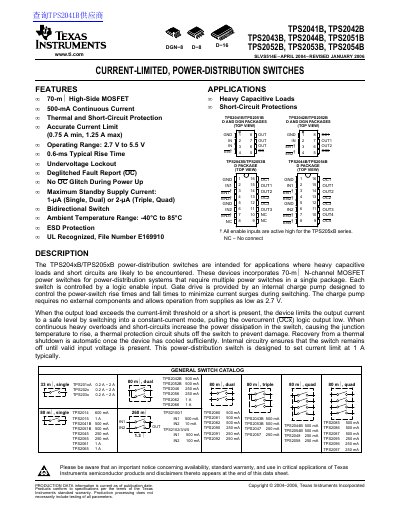

TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B handbook
The TPS204xB/TPS205xB family consists of current-limited, power-distribution switches intended for applications with heavy capacitive loads and short circuits. These devices incorporate 70-mΩ N-channel MOSFET power switches controlled by logic enable inputs to manage multiple power sources in a single package.
The internal charge pump design controls rise and fall times to minimize current surges during switching, requiring no external components. The chips feature accurate current limiting, thermal protection, undervoltage lockout, and deglitched fault reporting to ensure safe operation from 2.7 V to 5.5 V supplies.
Texas Instruments TPS2041B specifications
| Continuous Current Limit | 500 mA |
|---|---|
| On-State Resistance (Typical) | 70 mΩ |
| Operating Voltage Range | 2.7 V to 5.5 V |
| Rise Time (Typical) | 0.6 ms |
| Ambient Temperature Range | -40°C to 85°C |
| Thermal Shutdown Threshold | 135°C |
Source: TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B handbook
All Texas Instruments TPS2041B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical rise time of the switch?
The typical rise time for the output is 0.6 ms.
From: TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B handbook
Do these switches require external components for operation?
No, the internal charge pump requires no external components to control switching times.
From: TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B handbook
What is the typical rise time for these switches?
The typical rise time is 0.6 ms.
From: TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B datasheet
Do these devices include thermal protection?
Yes, a thermal protection circuit shuts off the switch if junction temperature rises due to continuous heavy overloads or short-circuits.
From: TEXAS INSTRUMENTS TPS2041B TPS2042B TPS2043B TPS2044B TPS2051B TPS2052B TPS2053B TPS2054B datasheet
