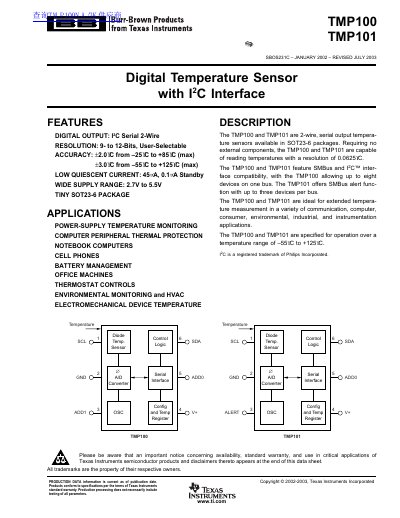

Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
The document details the TMP100 and TMP101, which are 2-wire, serial output temperature sensors available in SOT23-6 packages. These devices require no external components for basic operation and feature SMBus and I²C interface compatibility. The TMP100 supports up to eight devices on one bus, while the TMP101 offers an alert function with support for up to three devices per bus.
Read onlineTexas Instruments TMP100 specifications
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| Accuracy (Temperature Error) | +2.0°C max from -25°C to +85°C |
| Resolution | 9- to 12-Bits, User-Selectable |
| Quiescent Current (Serial Bus Inactive) | 45 µA |
| Supply Voltage Range | 2.7V to 5.5V |
| Package Type | SOT23-6 |
Source: Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
All Texas Instruments TMP100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the TMP100 and TMP101 sensors?
The sensors offer a selectable resolution ranging from 9 to 12 bits.
From: Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
Are external components required for operation?
No, the sensors require no external components except for pull-up resistors on SCL, SDA, and ALERT.
From: Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
What is the resolution of the TMP100 and TMP101?
The sensors offer a selectable resolution ranging from 9 to 12 bits.
From: Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
How many devices can be connected on one bus for the TMP100?
The TMP100 allows up to eight devices to be connected on a single SMBus.
From: Texas Instruments TMP100/TMP101 Digital Temperature Sensor Datasheet
