Key facts
- Brand
- Texas Instruments
- Model
- TMS27C128
- Industry
- Industrial
- Documents
- 4
- Languages
- EN
- Last added
- 2012-08-01
Start here

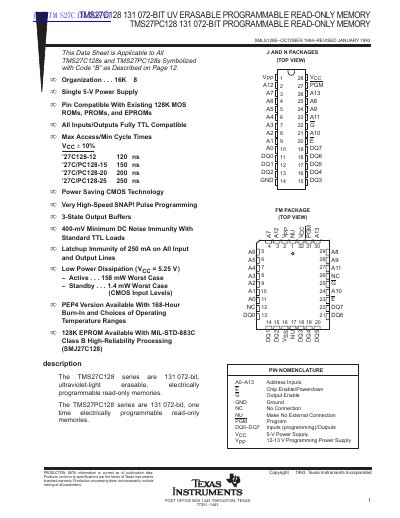

texas instruments TMS27C128 131 072-BIT UV ERASABLE PROGRAMMABLE READ-ONLY MEMORY TMS27PC128 131 072-BIT PROGRAMMABLE READ-ONLY MEMORY handbook
This datasheet describes the TMS27C128 series of 131,072-bit ultraviolet-light erasable, electrically programmable read-only memories (EPROMs) and the TMS27PC128 series of one-time electrically programmable read-only memories (PROMs). Both devices utilize power-saving CMOS technology and are pin-compatible with existing 128K MOS ROMs, PROMs, and EPROMs.
Read onlineTexas Instruments TMS27C128 specifications
| Organization | 16K x 8 |
|---|---|
| Power Supply | Single 5-V |
| Access Time (27C128-12) | 120 ns |
| Access Time (27C/PC128-15) | 150 ns |
| Access Time (27C/PC128-20) | 200 ns |
| Access Time (27C/PC128-25) | 250 ns |
| Active Power Dissipation | 158 mW |
| Standby Power Dissipation | 1.4 mW |
| Latchup Immunity | 250 mA |
All Texas Instruments TMS27C128 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- texas instruments TMS27C128 131 072-BIT UV ERASABLE PROGRAMMABLE READ-ONLY MEMORY TMS27PC128 131 072-BIT PROGRAMMABLE READ-ONLY MEMORY handbook 14 p
- Texas Instruments TMS27C128/TMS27PC128 131072-Bit UV Erasable PROM Datasheet 14 p
- texas instruments TMS27C128 131 072-BIT UV ERASABLE PROGRAMMABLE READ-ONLY MEMORY TMS27PC128 131 072-BIT PROGRAMMABLE READ-ONLY MEMORY handbook(2) 15 p
- TEXAS INSTRUMENTS TMS27C128 Data Sheet
Questions answered in these manuals
What is the difference between the TMS27C128 and TMS27PC128?
The TMS27C128 is UV erasable, while the TMS27PC128 is one-time programmable.
What voltage is required for programming?
Programming requires a 12-13 V supply (Vpp) in addition to the 5-V supply.
How is the TMS27C128 erased?
It is erased by exposing the chip through a transparent lid to high intensity ultraviolet light.
From: Texas Instruments TMS27C128/TMS27PC128 131072-Bit UV Erasable PROM Datasheet
Can the TMS27PC128 be erased?
No, logic lows programmed into this PROM cannot be erased.
From: Texas Instruments TMS27C128/TMS27PC128 131072-Bit UV Erasable PROM Datasheet
What is the organization of the TMS27C128?
The organization is 16K x 8.
What voltage is required for programming?
Programming requires a Vpp of 13.0 V and a Voc of 6.5 V.
