BLF2047 is a high power gain LDMOS transistor, featuring easy power control, excellent ruggedness, underside source eliminates DC isolators, reducing common mode inductance, designed for broadband operation (1.8 to 2.2 GHz). Internal input and output matching for high gain and efficiency.

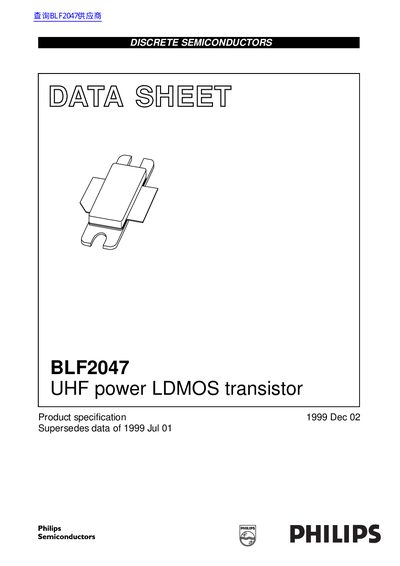

This document is a product specification datasheet for the BLF2047, a UHF power LDMOS transistor designed for broadband operation between 1.8 and 2.2 GHz. It is intended for common source class-AB operation in PCN and PCS applications within the 1800 to 2200 MHz frequency range. The device features high power gain, easy power control, and excellent ruggedness, with an internal input and output matching network to ensure high gain and efficiency.
| Frequency Range | 1.8 to 2.2 GHz |
|---|---|
| Storage Temperature | -65 to +150 °C |
| Junction Temperature | 200 °C |
It is designed for common source class-AB operation for PCN and PCS applications in the 1800 to 2200 MHz frequency range.
The maximum junction temperature is 200 °C.
