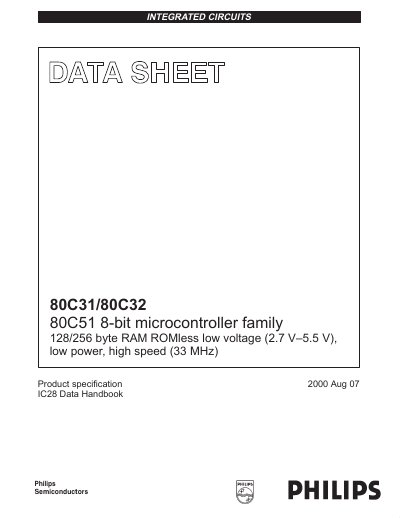

Philips 80C31/80C32 Data Handbook
The 80C31/80C32 family are ROMless 8‑bit microcontrollers fabricated in Philips high‑density CMOS technology. They operate from 2.7 V to 5.5 V, offer 128 × 8 RAM (80C31) or 256 × 8 RAM (80C32), four 8‑bit I/O ports, three 16‑bit timers, a full‑duplex UART and on‑chip oscillator, and can run up to 33 MHz.
The devices are available in PDIP, PLCC and PQFP packages and support several power‑saving modes: idle, power‑down and a stop‑clock mode that can halt the oscillator while retaining RAM and registers. Pin‑out tables, special‑function registers, and ONCE (On‑Circuit Emulation) mode details are included for hardware designers.
Philips 80C32 specifications
| CPU core | 8051 |
|---|---|
| RAM size | 128 × 8 bytes (80C31) / 256 × 8 bytes (80C32) |
| Operating voltage | 2.7 V – 5.5 V |
| Maximum clock frequency | 33 MHz |
| I/O ports | Four 8‑bit ports (32 I/O lines) |
| Timers | Three 16‑bit counter/timers |
| UART | Full‑duplex enhanced UART |
| Package types | PDIP, PLCC, PQFP (44‑lead) |
