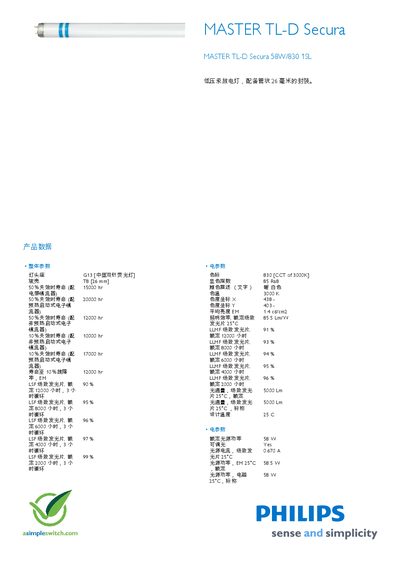

Philips MASTER TL-D Secura 58W/830 1SL User Manual
The MASTER TL-D Secura 58W/830 1SL is a low‑pressure mercury discharge lamp with a G13 base and T8 (26 mm) glass envelope. It delivers a color temperature of 3000 K, a CRI of 85 Ra, and a rated power of 58 W, offering about 5000 lm of luminous flux.
The manual includes product data, environmental parameters, safety instructions, packaging details, and luminance data. It also lists the lamp’s rated life (15000 h at 50 % failure) and efficiency (85.5 lm/W), and provides barcode and logistics information for proper handling and installation. This manual is written in Chinese.
Philips 830 1SL specifications
| Luminous Flux | 1350 lm |
|---|---|
| Rated Life | 13000 h |
| Base Type | G13 |
| Tube Size | T8 (26 mm) |
| Net Weight | 0.070 kg |
| Maximum Length | 589.8 mm |
| Maximum Diameter | 28 mm |
| EAN Barcode | 6923410770346 |
All Philips 830 1SL documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the physical dimensions of the lamp?
The lamp’s maximum length is 589.8 mm and its maximum diameter is 28 mm.
What is the rated power of the MASTER TL-D Xtreme lamp?
The lamp is rated at 18 W.
Is the MASTER TL-D Xtreme lamp dimmable?
Yes, the lamp is dimmable.
What lamp base does the MASTER TL-D Secura use?
It uses a G13 base.
What is the rated power of the MASTER TL-D Secura 58W/830 1SL?
The lamp is rated at 58 W.
What is the rated power of the MASTER TL-D Xtreme 58W/830 1SL lamp?
The lamp is rated at 58 W.
From: Philips MASTER TL-D Xtreme 58W/830 1SL Fluorescent Lamp User Manual
