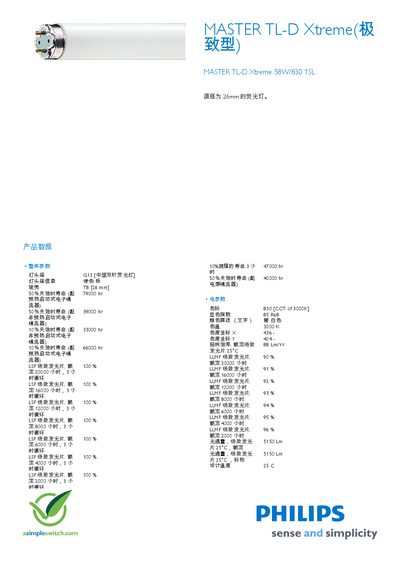

Philips MASTER TL-D Xtreme 58W/830 1SL Fluorescent Lamp User Manual
The MASTER TL-D Xtreme 58W/830 1SL is a 26 mm diameter fluorescent lamp designed for high‑efficiency lighting with a rated power of 58 W and a color temperature of 3000 K. It offers a luminous flux of 5150 lm and a color rendering index of 85 Ra.
The manual lists the lamp’s dimensions, electrical specifications, photometric data, and lifetime ratings (e.g., 20 000 h at 50 % failure with a pre‑heat electronic ballast). It also includes environmental parameters and regulatory markings. This manual is written in Chinese.
Philips Master TL-D Xtreme 58W specifications
| Lamp base | G13 |
|---|---|
| Diameter | 26 mm |
| Rated power | 58 W |
| Color temperature | 4000 K (CCT 840) |
| Luminous flux | 5150 lm |
| Efficacy | 88 lm/W |
| Mercury content | 3.0 mg |
| Lifetime (pre‑heat ballast) | 79 000 h |
Source: Philips MASTER TL-D Xtreme 58W/840 1SL Fluorescent Lamp Product Leaflet
All Philips Master TL-D Xtreme 58W documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of lamp base does the MASTER TL-D Xtreme use?
It uses a G13 base.
From: Philips MASTER TL-D Xtreme 58W/840 1SL Fluorescent Lamp Product Leaflet
What is the rated power of the lamp?
The lamp is rated at 58 W.
From: Philips MASTER TL-D Xtreme 58W/840 1SL Fluorescent Lamp Product Leaflet
What is the rated power of the MASTER TL-D Xtreme 58W/830 1SL lamp?
The lamp is rated at 58 W.
From: Philips MASTER TL-D Xtreme 58W/830 1SL Fluorescent Lamp User Manual
What is the maximum diameter of the lamp?
The maximum diameter is 28 mm.
From: Philips MASTER TL-D Xtreme 58W/830 1SL Fluorescent Lamp User Manual
What is the rated power of the Master TL‑D Xtreme lamp?
The lamp is rated at 58 W.
Is the Master TL‑D Xtreme lamp dimmable?
Yes, the lamp is dimmable.
