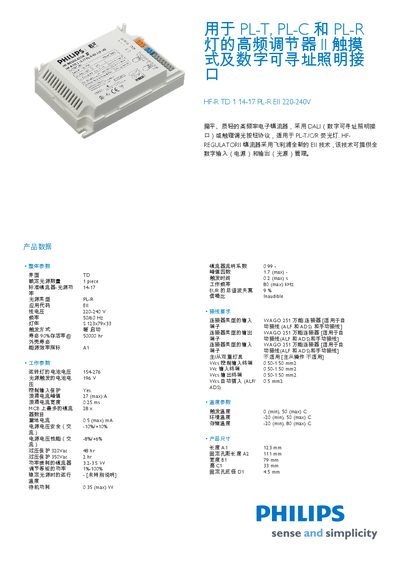

Philips HF-RTD1 14-17 PL-R 220-240V Product Data Sheet
The HF-RTD1 is a high‑frequency electronic ballast that supports DALI or touch‑dim control for PL‑T, PL‑C and PL‑R fluorescent lamps. It offers digital input and output management and complies with multiple safety and EMC standards.
The sheet lists key electrical parameters such as a line voltage of 220‑240 V, operating frequency up to 80 kHz, and a maximum power loss of 0.35 W. Physical dimensions are 123 mm × 79 mm × 33 mm and the unit weighs 0.195 kg. Temperature limits, surge protection, and over‑voltage protection values are also provided. This manual is written in Chinese.
Philips HF-RTD1 specifications
| Line voltage | 220‑240 V |
|---|---|
| Line frequency | 50/60 Hz |
| Maximum power loss | 0.35 W |
| Peak factor (max) | 17 |
| Trigger time (max) | 0.2 s |
| Working frequency (max) | 80 kHz |
| Net weight | 0.195 kg |
| Operating temperature range | 0 °C to 50 °C (trigger), –20 °C to 50 °C (ambient) |
Source: Philips HF-RTD1 14-17 PL-R 220-240V Product Data Sheet
All Philips HF-RTD1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What line voltage does the HF‑RTD1 support?
It is rated for 220‑240 V line voltage.
From: Philips HF-RTD1 14-17 PL-R 220-240V Product Data Sheet
What is the maximum operating frequency of the ballast?
The ballast can operate up to 80 kHz.
From: Philips HF-RTD1 14-17 PL-R 220-240V Product Data Sheet
What is the rated line voltage of the HF-RTD 118 PL‑T/C?
It is rated for 220‑240 V AC line voltage.
What is the maximum trigger time for the ballast?
The maximum trigger time is 0.2 seconds.
