This datasheet provides the specifications of SPP20N60C3, SPB20N60C3 SPI20N60C3, SPA20N60C3, including maximum voltage, current, frequency, etc.

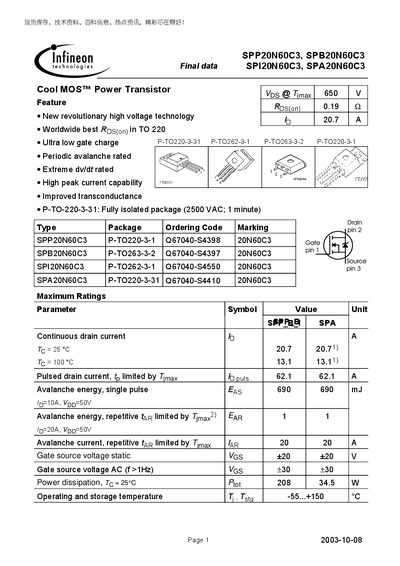

This document provides the final data for Infineon's Cool MOS™ power transistors SPP20N60C3, SPB20N60C3, SPI20N60C3 and SPA20N60C3. It lists key features such as ultra‑low gate charge, high peak current capability, and periodic avalanche rating, together with detailed maximum ratings and thermal characteristics.
The datasheet includes extensive electrical parameters, gate‑charge characteristics, transient thermal impedance, and typical output and switching characteristics. Package information for TO‑220 and TO‑263 variants is also provided, along with safety and warranty notices.
| Continuous drain current (Ib) at 25 °C | 20.7 A |
|---|---|
| Power dissipation at 25 °C | 208 W |
| Operating temperature range | -55 °C to +150 °C |
The maximum continuous drain current is 20.7 A at 25 °C.
The maximum power dissipation is 208 W at an ambient temperature of 25 °C.
