Start here

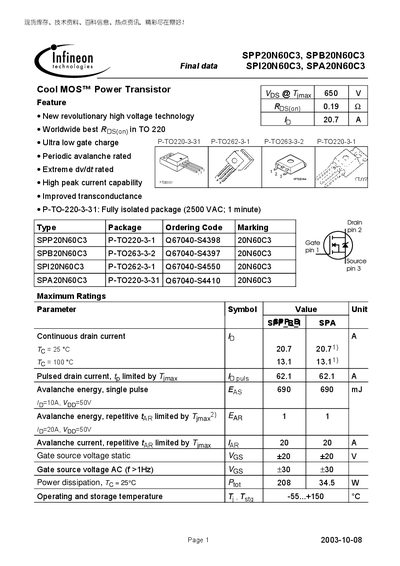

Infineon SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3 Power Transistor Datasheet
This Infineon datasheet presents the electrical, thermal and switching characteristics of the Cool MOS™ power transistors SPP20N60C3, SPB20N60C3, SPI20N60C3 and SPA20N60C3. The document includes maximum ratings, typical performance curves and package information for designers.
Key parameters include a 600 V drain‑source breakdown voltage, 20.7 A continuous drain current, and a power dissipation rating of up to 208 W at 25 °C. Detailed gate‑charge data, on‑state resistance and transient thermal impedance are also provided.
Infineon SPA20N60C3 specifications
| Continuous drain current (Ib) at 25 °C | 20.7 A |
|---|---|
| Power dissipation at 25 °C | 208 W |
| Operating temperature range | -55 °C to +150 °C |
Source: infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1)
All Infineon SPA20N60C3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current?
The maximum continuous drain current is 20.7 A at 25 °C.
From: infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1)
What is the maximum power dissipation?
The maximum power dissipation is 208 W at an ambient temperature of 25 °C.
From: infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1)
