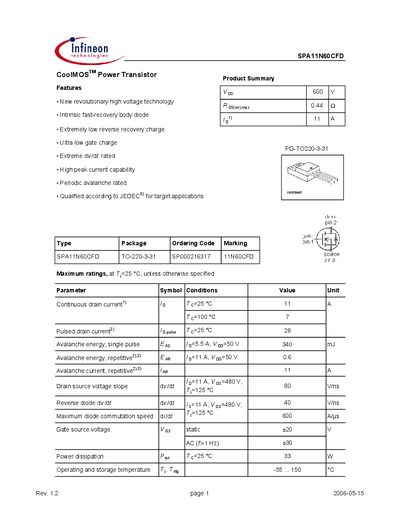

Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
The SPA11N60CFD is a CoolMOS™ power transistor offered by Infineon Technologies. It features a high voltage rating, fast‑recovery body diode, low reverse recovery charge, and an ultra‑low gate charge, packaged in a TO‑220‑3‑31 (FullPAK) case.
The document lists maximum ratings, thermal and electrical characteristics, dynamic behavior, and typical output curves. Key parameters such as drain‑source voltage, continuous and pulsed drain currents, gate threshold, on‑state resistance, and power dissipation are detailed for design and reliability assessment.
Infineon SPA11N60CFD specifications
| Drain‑source voltage rating | 600 V |
|---|---|
| Continuous drain current (Id) @ 25 °C | 4 A |
| Pulsed drain current (Id,pulse) @ 25 °C | 28 A |
| Gate threshold voltage (Vgs(th)) | 3‑5 V |
| On‑state resistance (Rds(on)) | 0.38‑0.44 Ω |
| Maximum power dissipation (Pd) @ 25 °C | 33 W |
| Operating temperature range | -55 °C to 150 °C |
Source: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
All Infineon SPA11N60CFD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage rating of the SPA11N60CFD?
The transistor is rated for a maximum drain‑source voltage of 600 V.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
What continuous drain current can the SPA11N60CFD handle at 25 °C?
It can conduct a continuous drain current of 4 A at 25 °C.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
What is the typical on‑state resistance at 25 °C?
Typical on‑state resistance at 25 °C is 0.38 Ω.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
Which package does the SPA11N60CFD use?
It is supplied in a TO‑220‑3‑31 (FullPAK) package.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
What is the maximum continuous drain current of the SPA11N60CFD?
The continuous drain current is rated at 4 A at 25 °C.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
What is the breakdown voltage of the SPA11N60CFD power transistor?
The device has a drain‑source breakdown voltage of 600 V.
From: Infineon SPA11N60CFD CoolMOS Power Transistor Datasheet
