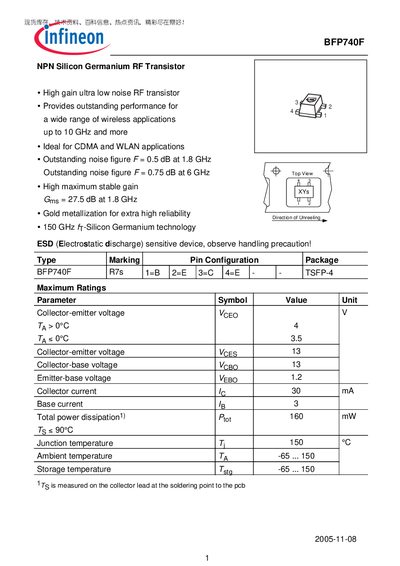

Infineon BFP740F RF Transistor Datasheet
Datasheet 10 pages · 172 KB · EN
The BFP740F is a silicon‑germanium NPN RF transistor designed for wireless applications such as CDMA and WLAN up to 10 GHz. It offers a low noise figure (0.5 dB at 1.8 GHz) and high maximum stable gain (27.5 dB at 1.8 GHz).
Key specifications include a collector‑emitter voltage of 13 V, collector current of 30 mA, transition frequency of 42 GHz, and a total power dissipation of 160 mW. The device is supplied in a TSFP‑4 surface‑mount package and is rated for junction temperatures up to 150 °C.
Infineon BFP740F specifications
| Collector‑emitter voltage (VCEO) | 13 V |
|---|---|
| Noise figure (F) at 1.8 GHz | 0.5 dB |
| Maximum stable gain (Gms) at 1.8 GHz | 27.5 dB |
| Package type | TSFP‑4 |
All Infineon BFP740F documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
