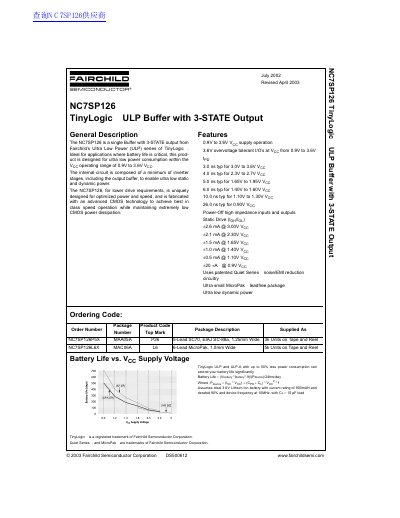

Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer Datasheet
The NC7SP126 is a single buffer with 3-STATE output designed for ultra-low power consumption within a supply voltage range of 0.9V to 3.6V. It belongs to Fairchild Semiconductor's Ultra Low Power (ULP) Series of TinyLogic devices and features overvoltage tolerant I/Os.
Read onlineFairchild NC7SP126 specifications
| Supply Voltage | 0.9V to 3.6V |
|---|---|
| Operating Temperature | -65°C to +150°C |
| Static Drive Current | 42.6 mA |
| Package Options | 5-Lead SC70, 6-Lead MicroPak |
Source: Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer Datasheet
All Fairchild NC7SP126 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the NC7SP126 have 3-STATE output?
Yes, it is a single buffer with 3-STATE output designed for optimized power and speed.
From: Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer Datasheet
What is the operating voltage range for the NC7SP126?
The device operates with a supply voltage ranging from 0.9V to 3.6V.
From: Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer Datasheet
What is the operating voltage range?
The device operates with a Vcc supply voltage from 0.9V to 3.6V.
From: Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer with Three-State Output Datasheet
What is the typical propagation delay at 3.0V?
The typical propagation delay is 3.0ns for a Vcc between 3.0V and 3.6V.
From: Fairchild Semiconductor NC7SP126 TinyLogic ULP Buffer with Three-State Output Datasheet
